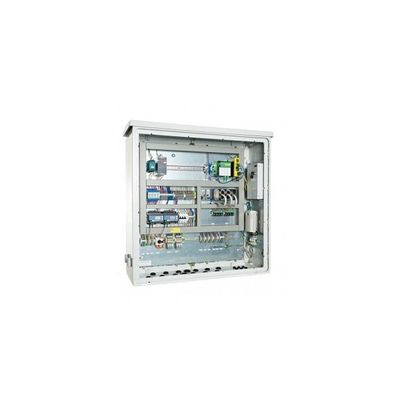

PADCON - Model AC Box -Data Collection Sensor Box

Housing

• Installation: Outdoor / Indoor
• UV resistance: Yes
• Material: Fiberglass reinforced polycarbonate
• Fire properities: Self-extinguishing and halogen-free
• Colour scheme: RAL 7035
• Mounting: Ground or wall mount

Dimensions & Weight

• Housing (width/height/depth): 1300/1200/300mm
• Weight: Approx. 80kg (depending on configuration)

Input parameters

• Analog-Inputs: 64 AI, ±10V
• Digital-Inputs: 32DI (of which 6 are electrically isolated), 24V

Communication

• Internet: Internet connectivity via PADCON Communication Box
• Plant structure: Connection of up to 8 PADCON Sensor Boxes per PADCON Communication Box
• Connection to PADCON Communication Box: Via fiber optic or ethernet
• Fiber optic media converter: Monomode Type
• Ethernet Switch: 7 Port
• Device Access: Communication with PADCON Sensor Box (cRIO and analyzers) via internet

AC connection

• AC Current measurement: 2x3 Phase Current converter, max. 5A
• AC Voltage measurement: 2x3 Phase Voltage measurement
• PE: 1,5-2,5mm²

Functionality

• Signal acquisition for connected sensors: Analog and digital Signals
• Reset function: Remote reset of connected hardware
• Layout: For 2 Power blocks in one station
• Buffer function: Data buffering on connection disturbance
• Synchronization: Time
• Power supply: 400V AC / 230V AC

CE-Conformity

• CE: Conform
• UL-508A: UL listed

Protection class and ambient conditions

• Protection class in accordance with EN60529: IP 54
• Permissible ambient temperature: -20 °C to +50 °C
• Rel. humidity non-condensing: 15% to 90%
• Altitude above sea level: Max. 2.000 m

Additional properties

• Surge protection: Typ 2
• Accessories: Base

Optional

• Uninterrupted power supply: Preperation for 24V USV power supply
• cos(φ) control: Connection to PADCON power Control Box for park control
