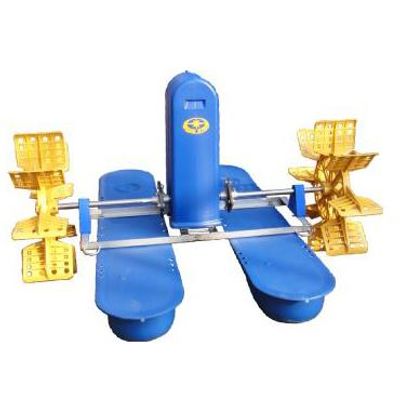

Hung Star - Model HS-A120a -Paddle Wheel Aerator

MOTOR:

1. Best quality whole round silicon steel plate.
2. Average 3 phase current.
3. Special design for aquaculture and suitable for high temperature.

REDUCER:

1. High density design and combination make the the set agoing currently.
2. Low drag also make the energy saving.

IMPELLER:

1. Trident model with special angle design make strong water flow and high oxygenation performance.
2. Low maintenance cost and replaceable.
3. Toughness with corrosion.

FRAME:

1. Sturdy #304 stainless steel frame ensure duration and without deformation.

FLOATER:

1. All new HDPE material.
2. One piece blow mold.
3. Resist impact, acid-alkalinity and UV.

MOTOR COVER:

1. All new HDPE material.
2. UV resistance.

MOVABLE JOINT:

1. Specialized field dressing.

SHAFT:

1. Professional designed NYLON shaft or sturdy stainless steel shaft.

PLASTIC BEARING:

1. Nylon material with hard-wearing rubber sleeve to make shaft in good operation.

1. Strong water current and high oxygenation performance, easy maintenance and energy saving.
2. The complete machinery, from design, select raw material,production to pack are all under strict quality control which will supply you the execellent products of aerator.
3. Manufacturer reserves the right to change the specification contained herein without notice

• Country of Origin : Taiwan
• Main Export Markets : world
• Payment Details
• Payment Terms : TT or L/C
• Minimum Order : 1 - UPSets
• Others : Less than container shipment, payment by T/T in advance only.
• For container shipment, payment could be:
• A. 30% T/T as deposit & confirm order, 70% T/T 7 days before shipment.
• B. 100% by irrevocable at sight L/C.
• Delivery Details
• Lead Time : 30 Days
• FOB Port : Kaohsiung Taiwan
• Others : information required:
• Motor Voltage: HZ: phase:
• Quantity:
• Destination port:
• Ratio: 14:1/50HZ 17:1/60HZ
• FOR 1HP (2impeller) 2HP(4impeller) paddlewheel Aerator
