Lucenline - Model FSP10 -Paddlewheel Flow Sensor

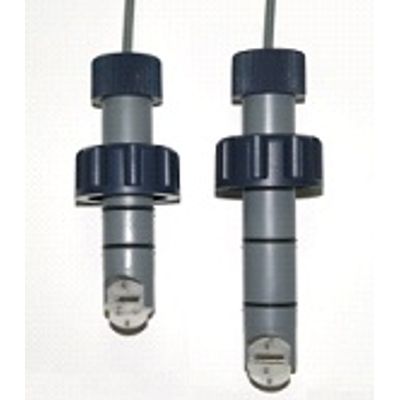

The Lucenline FSP10 paddlewheel flow sensor is a highly reliable sensor that can measure flow from 0.15 - 8m/s(0.5 -26ft/s). The output signal of the FSP10 is a highly repeatable frequency signal. The key IC of the sensor has superior temperature measurement stability and short-circuit protected output. Using proper fittings, the Lucenline FSP10 flow sensor can measure pipes in sizes from DN15 to DN600 (0.5" to 24").
Most popular related searches
paddlewheel flow sensor
flow sensor
flow monitoring
temperature monitoring
pipe thickness monitoring
current sensor
- Five blade paddlewheel for good accuracy
- Easy installation design
- Wide range capacity
- Square pulse output
- Chemical resistant materials
- Operating range from 0.15 - 8m/s(0.5 -26ft/s)
General
- Pipe Size Range: DN15 to DN600 (0.5" to 24").
- Select different installation fittings for different pipe sizes and materials.
- Measuring Range: 0.15 to 8 m/s(0.5 to 26 ft./s).
- Linearity: ± 1% of maximum range.
- Repeatability (in any fittings): ± 0.5% of maximum range.
- Minimum Reynolds Number Required: 4500.
- Enclosure: IP68.
- Wetted Materials:
- Sensor Body: CPVC.
- O-rings: EPDM/FPM.
- Rotor: PVDF.
- Rotor pin: Titanium.
- Bearings: Titanium.
Electrical
- Supply voltage: 3 to 24 VDC ± 10% regulated.
- Supply current: < 4mA @ 24 VDC.
- Output signal:
- Square wave.
- Frequency: 45 Hz per m/s nominal (13.7 Hz per ft/s nominal).
- Short-circuit protected open collector.
- Output current: 25mA maximum.
- Sensor Cable: Cable length: 6.1 m (20.0 ft) standard, 305 m (1000 ft) maximum.
- Cable type: 22 AWG fully annealed stranded tinned copper per ASTM B-33.
Maximum Operating Pressure / Temperature
- CPVC body: 12 bar (174 psi) @ 25°C (77°F)
- 1.5 bar (22 psi) @ 80° C (176°F).
