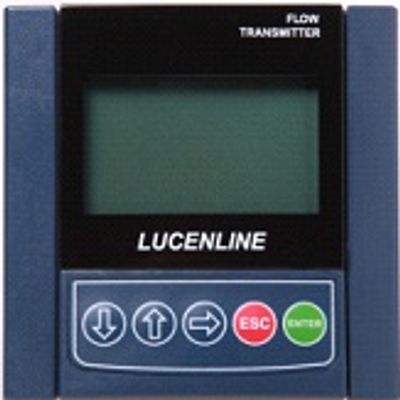

Lucenline - Model F2100 -Paddlewheel Flow Transmitter

• Large LCD display
• Versatile sensor capability
• User-friendly menu-guided operation
• Isolated 4-20 mA analog output
• Real 2-wire system power / loop output
• NEMA 4X/IP65 enclosure
• Password-protected access
• Installation flexibility

Display

• LCD: 128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc.
• Update rate: 1 second.
• Contrast: User selected, 5 levels

Measurement

• Display accuracy: ±0.5% of reading
• Repeatability*: ± 0.05% of span
• Temperature Drift*: Zero and Span: ± 0.02% of span per°C
• *These performance specifications are typical at 25°C

Electrical

• Power: 19-48VDC, regulated, 30mA maximum
• Sensor Input (Frequency): Compatibility: Lucenline FSP10 Flow Sensors
• Range: 0.5~1500Hz
• Sensor Power: 5.0VDC±10%
• Current Output: Isolated 4-20 mA output with 0.004 mA (12-bit) resolution
• Update Rate: 1 second
• Maximum Loop Impedance: 250Ω@24V; 600Ω@31V; 1500Ω@48V
• Memory: Non-volatile: All user settings are retained indefinitely without battery backup
• Open-Collector Output: Isolated, 50 mA sink, 40 VDC maximum pull-up voltage
• The OC output can be configured to one of the following four modes:
• High or Low mode; Pulse or Frequency, with the pulse width or divisor defined by user

Ambient Conditions

• Operation: -10°C to 70°C (14°F to 158°F); 0-95% relative humidity, non-condensing
• Transport/storage: -15°C to 80°C (5°F to 176°F); 0-95% relative humidity, non-condensing
