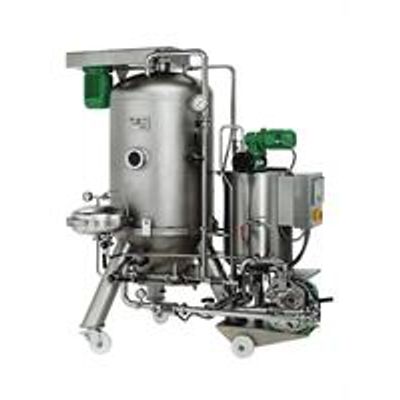

Padovan - Horizontal Plates D.E. Filter

Thanks to the original patented Padovon design, the filter plates: Are plain and indeformable; Assure an elevated drainage flow during filtration and precoating, besides a complete and accurate washing, even under the filtering cloth; Are made of stainless steel AISI 304 sheet provided with drawn reliefs, against which is placed the filtering cloth made of stainless steel AISI 316L with a 65 micron mesh. The most significant feature consists in the lack of the drainage grid, a cause of pollution. Motorization for rotation of filter plates is equipped with hydraulic coupling. Greenfilter is equipped with a special inlet flow distributor that avoids vortexes and abnormal flows of liquid at both high and low outputs.
