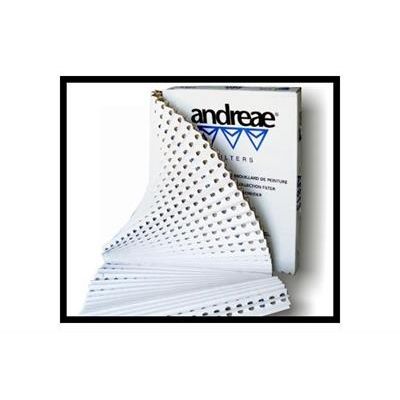

Andreae - Paint Arrestor Filters
ANDREAE Standard Filters are used on the floors of paint booths for overspray collection. The front V-shaped wall of the filter prevents overspray bounce back and migration. The deeper V-shape of the back wall is the paint holding pocket. The filter exhaust holes are misaligned to divert the paint laden airflow to the holding pocket while maintaining a constant flow during the loading phase.
ANDREAE Standard Filters last 3 to 5 times longer than polyester, fiberglass, or mesh; captures any wet solids or liquid particles: high solid enamels, baked and air dried enamels, glues, oils, stains, lacquers, fiberglass, epoxies, asphalts, clear coats, tar, teflon, etc. Recommended air velocity 49-197 FPM. Max pressure Drop 0.51 in/wc possible up to 1.03 in/wc.
The ANDREAE High Efficiency features deeper V-shape of the back wall that captures overspray and deposits it outside of the air flow in the paint holding pockets. The position of the holes forces the air flow to change directions along three axes while the added layer of polyester captures the smallest particles.
ANDREAE High Effeciency Filters last 4 to 6 times longer that polyester, fiberglass, or mesh. Fewer filter changes means less disposal costs, less labor, and more production time due to fewer change outs. Recommended air velocity 49-197 FPM. Max pressure Drop 0.51 in/wc possible up to 1.03 in/wc.
