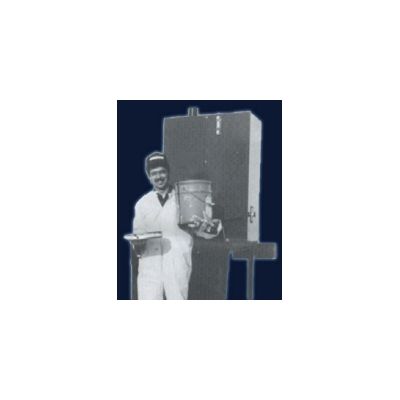

Teemark SuperModel 6 -Paint, Can, Pail And Filter Crushers

SHARE

Power System Alternatives:. 1-1/2hp* 115/230v 1ph 20/10a w/starter, 12-20 sec cycle. 3 hp* 208-230/460v, 3ph, 11-10/5a w/o starter, 12 sec cycle. * Explosion Proof Class 1, Group D. 1-1/2hp 80 psi Air @ 40 SCFM, 20-sec cycle. Crushing Force: 30,000 pounds. Cycle Time: 12 TO 20 SECONDS. Crushing Chamber : 16"w x 16"d x 18"h. Dimensions: 37"w x 37"d x 101"h. Clearance Under Stand: 41". Approximate Shipping Weight: 960 lbs . Warranty: 1 year on all materials and workmanship.

Most popular related searches

Features

  • Multi-purpose crushing!
    The Super 6 crushes six gallon pails and most anything that is smaller. Aerosol cans, oil filters and a variety of pails, cans and drums are all crushed by the Super 6.
  • Crushing Force Of 30,000 Pounds Crushes steel* containers so you can put up to 15 crushed cans in the space required by a whole can. Crushed five gallon pail shown. These units will also crush and squeeze the contents from plastic containers but plastic tends to spring back to its original size after crushing.
  • Choice Of Power
    Super 6 crushers are available with several electrical power choices that are spelled out below. Units powered by shop air are also available
  • Liquid Collection Capability
    Convenient collection alternatives available in 55 gallon drums, totes or customized arrangements..
  • Crusher Stand
    Provides 41 inches of clearance for a 55 gallon drom on a roller conveyer.
  • Optional Roller Conveyer
    May be used to remove full drums from crusher stand area.
  • Safe, Explosion Proof
    Units will not operate with door open. Power supplies are explosion proof and suitable for use with oil base paints or other flammable liquids.
  • Hydraulics
    Rugged two speed hydraulic pump provides 30,000 pounds of crushing force.
