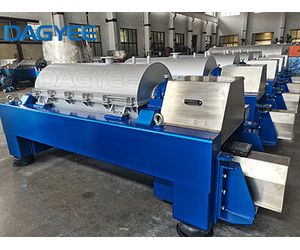

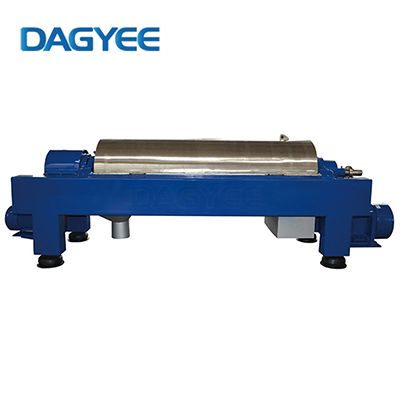

Dajiang - Model LW -Palm Oil Sludge Separation 2 Phase Decanter Centrifuge
The feed product is pumped into the decanter centrifuge through an inlet. Feed into a horizontal bowl and then rotate. The bowl consists of a cylindrical portion and a conical portion. The separation takes place in the cylindrical part of the bowl. Fast rotation produces centrifugal forces of up to 4000 x g. Under these forces, solid particles with a higher density are collected and compacted on the wall of the bowl. The scroll (also a screw conveyor or screw conveyor) rotates inside the bowl at slightly different speeds. This speed difference is called a differential speed. In this way, the scroll conveys the precipitated particles along the cylindrical portion of the bowl to the conical end of the bowl. At the smallest end of the conical portion of the filter bowl, dehydrated solids leave the filter bowl through the discharge port. The clarified liquid exits through the mating disc (internal centrifugal pump).
2 Phase Decanter Centrifuges Description
The 2-Phase Separating Decanter is a centrifuge in which the clarified and separated oil phase is gravity discharged on the decanter’s liquid side while the heavy liquid phase leaves the decanter together with the solids.
2 Phase Decanter Centrifuges Technical
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered.
Low labor costs due to continuous and automatic operation.
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
2 Phase Decanter Centrifuges Features
Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A).
High Speed up to 3600RPM & Variable Speed by frequency converter.
The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy.
The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic.
Solids discharge stainless steel protected by high-chromium iron.
Solids Liquid separation system package available.
Germany FAG/SKF brand bearings.
Eletrical Components: SIEMENS/Schneider/ABB.
2 Phase Decanter Centrifuges Application
Waste water treatment
Food processing
Waste recycling
Fish processing
Beneficiation
Organic Chemicals
Inorganic chemical industry
Polymer industry
Chemicals
