Infratech Solutions - Model P50B -Pan & Tilt Push Rod Camera System

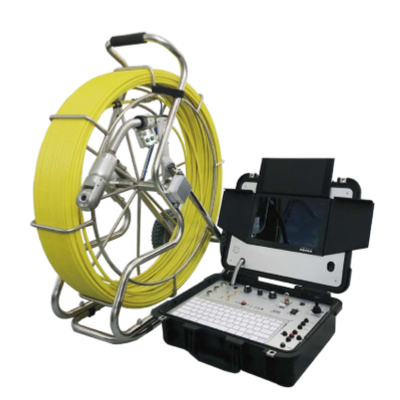

The P50B Pan & Tilt is a push rod camera system designed for inspecting various surfaces such as sewer systems, drains, pipe walls, vessels, and tanks. Its camera sensor is safeguarded by a robust sapphire lens that is resistant to scratches. Constructed from aluminum and stainless steel, the camera head has an IP68 waterproof rating, making it suitable for underwater inspections. Equipped with adjustable high-intensity LED lights, the system provides powerful illumination for clearer inspection visuals. The control unit features a 10-inch color monitor that enables on-site viewing of real-time inspection footage. Users can store inspection results, including videos and images, on a USB flash drive or memory card. The system supports pipe diameters ranging from 4 to 8 inches and uses a 700TVL, 720p auto-leveling camera head, offering a 180° pan and 360° tilt. The included cable reel is 196 feet long, with an optional upgrade to 393 feet, and features a manual fiberglass design.The P50B Pan & Tilt is a push camera that is suited for inspecting sewer, drains, vessels, pipe walls, and tanks. The camera sensor is protected by a durable, scratch-proof sapphire lens. The camera head is made of aluminum and stainless steel and is IP68 waterproof rated. The adjustable high-intensity LED lights provide intense illumination. The control unit is equipped with a 10″ color monitor screen. Inspection results can be saved as videos and images directly to a USB flash drive or a memory card to be viewed on-site.
Working Diameter: For Pipes Diameter From 4" to 8"
Pan and Tilt Camera Head: 700TVL; 720p; Sensor 1/4"; Pan 180°; Tilt 360°; Adjustable High-intensity LEDs
Auto Leveling Camera Head: 700TVL; 720p; Sensor 1/4"; Adjustable High-intensity LEDs
Waterproof Rating: IP68
Cable Reel: 196' Manual Fiberglass Cable Reel
DVR Control Unit: 1024*768 LCD Screen
Pan and Tilt Camera Joystick: USB Port; Video Input Jack, Microphone Audio Recording, A/V Output Jack, 8800mA Rechargeable Li-ion Battery; 5 Stage Battery Level Indicator; Sunshield; 128GB SSD Hard Drive
Cable Reel: 393' Manual Fiberglass Cable Reel
