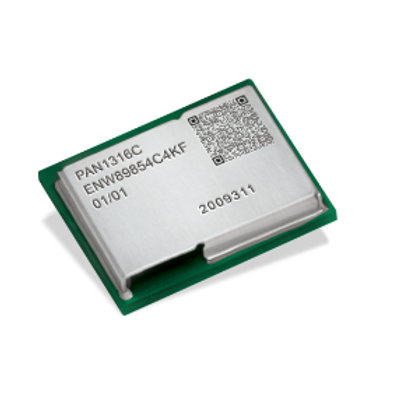

Panasonic - Model PAN1326C2 / PAN1316C (CC2564C) -Radio Frequency (RF) Module

Panasonic’s PAN1326C2 / PAN1316C Series is a Host Controlled Interface (HCI) Bluetooth® Radio Frequency (RF) module that brings the CC2564C, Texas Instruments™ seventh generation Bluetooth core integrated circuit, to an easy to use module format. The PAN1326C2/PAN1316C is Bluetooth® 5.1 compliant and offers the best-in-class RF performance with about twice the range of other Bluetooth Low Energy solutions. The series comes in two versions: one with an integrated chip antenna (ENW89823A5KF) to keep the RF design effort to a minimum and one with an RF bottom pad (ENW89823C4KF) if radio hostile circumstances require an external antenna.
