Algae Toximeter - Model M5 -Panel Mount Connector
M5 4-pin PCB through-hole soldered board-side female connector. This type of M5 4-pin female plug-in female connector can be soldered to the board through the PCB through-hole and can be mass-produced orthrough a reflow oven for dramatic productivity gains. M5 PCB lock-plate female connector, front mount, single wire with soldering. The PCB M5 female connector is available in 3-way and 4-way connectors. It can be mounted from the front of the PCB and soldered to a single wire.M5 panel mount connector

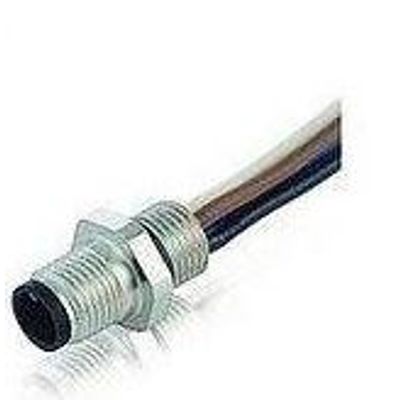

Front M5 Solder Type Male Connector 3-pin 4-pin. The pre-board M5 machine is easily connected to the female on the board. Simi Connection Technology provides high-quality industrial waterproof connectors to customers worldwide.
M5 panel mount connector,M5 4-pin PCB through-hole soldered board-side female connector. This type of M5 4-pin female plug-in female connector can be soldered to the board through the PCB through-hole and can be mass-produced through a reflow oven for dramatic productivity gains. M5 PCB lock-plate female connector, front mount, single wire with soldering. The PCB M5 female connector is available in 3-way and 4-way connectors. It can be mounted from the front of the PCB and soldered to a single wire. Front M5 Solder Type Male Connector 3-pin 4-pin. The pre-board M5 machine is easily connected to the female on the board. Simi Connection Technology provides high-quality industrial waterproof connectors to customers worldwide.
- General information:M5 panel mount connector
- Standard: IEC 61076-2-105
- Ambient temperature: -20? ~ +80?
- Connector insert: TPU;PA
- Connector contacts: Brass with gold plated
- Connector over-molding: TPU
- Coupling nut/screw: Brass with nickel plated
- Seal/O-ring: FKM
- Insulation resistance: ≥100MΩ
- Contact resistance: ≤5mΩ
- Shielding: Unavailable
- IP rating: IP67 in locked condition
