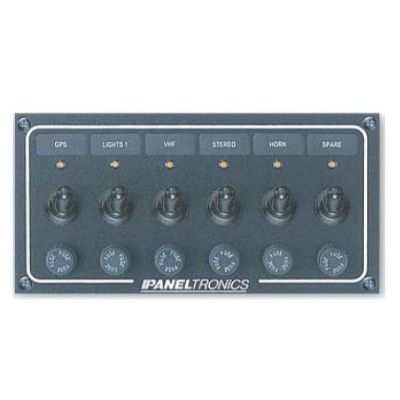

Paneltronics - Model 9960002B -DC 6-Position Toggle Switch Panel

Switches
Toggle Switches are provided with  Rubber Boots for protection against dust, prolonged salt-water   spray,   and   submersion   under pressure. Rated at 15 Amps @ 12VDC.

Indicator Lights
Toggle Switch panels 9960008 and 9960009 are available with amber LED indicator lights.

Fuse Holders & Fuses
Front   mounted  fuse   holders  make  fuse replacement easy. Fuse Holders are splash proof and are molded of high temperature flame-retardant thermoplastic. Equipped with quick-connect terminals, they are UL recognized at 20 Amps @250V and CSA certified at 16 Amps @250V. Standard fuses are UL listed/CSA certified and rated at 10 Amps @32VDC.

DC Positive Bus
The DC Positive Bus is a 12 AWG, marine grade tinned wire. This 105° C rated wire is flame   retardant  and   moisture   resistant. Terminations   are   fully   insulated   quick-connect terminals.

Wiring
Each panel is completely pre-wired for easy installation.

Function Labels
Each horizontal panel includes fifty interchangeable function labels. Each vertical panel includes twenty labels.

Panels
Panels are 1/8` ` corrosion resistant aluminum with a two-part black polyurethane finish Graphics  are screen printed in white. All mounting hardware is - included.
