Titan - Model Y82/HPM/HPA Series -Paper Baling Machine
The TITAN Y82 series hydraulic baling press, there are 4 standard models available and the customized design according to the clients` specificrequirements is available. The system is mainly used to press non-metal waste like paper, cardboard, plastic bottles, Cola cans, clothes fabric, straw hay etc into a rectangular bale with a size suitable for truck transportation or containerization. The Y82 series is vertical type, easy and handy to operate.

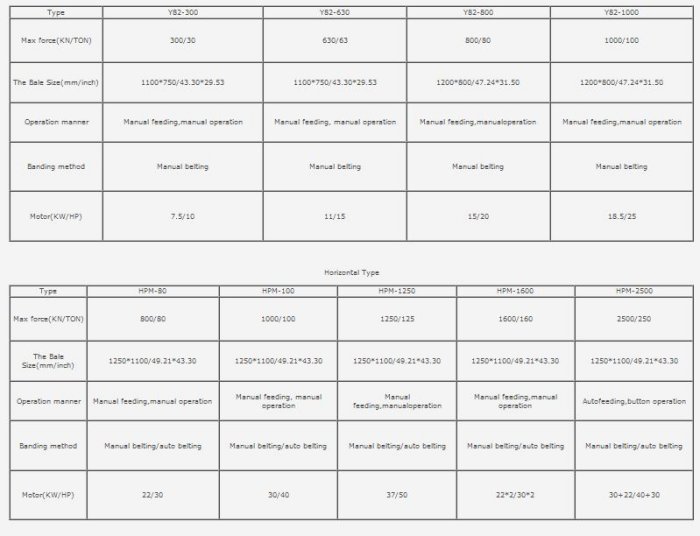

Model & Efficiency
Various models with different press force from 30-100 tons, various production capacity; other models with bigger force are
also available under customized requirement.
Bale tying system
Y82 vertical series can tie the bale manually only
Chamt>er & bale
Repeated feeding material and pressing is the advantage of Y82 vertical series, simple operation, solid and stable system makes it convenient and little maintenance
Bale-discharging system
Hydraulic cylinder assisting bale discharging, no much labor force needed.
Power system & installation
Electrical power, common flat ground and no need foot bolt for installation
