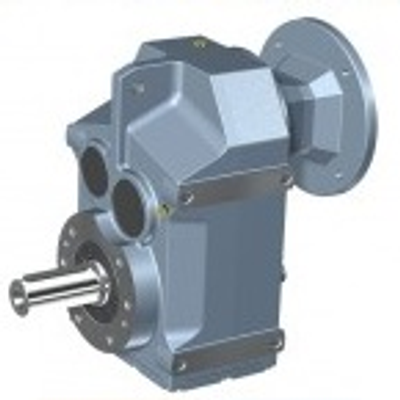

Parallel Shaft Helical Gear Box

• Example: GF(F)77-52.07-M2
• GF: F Series Parallel shaft helical gear-unit
• (F): None-Solid axes output, F-flange output with solid shaft, A-Output hollow shaft. H-Hollow shaft output with shrink disk, A/HT- Torque-arm mounted (F17...R77)- Combined types
• SZ...AD- Input solid shaft
• 77:Gearbox model number
• 52.07: Gear reduction ratio
• M2: Mounting way

Parallel shaft gear-box Parameters

• Power range: 0.12-200kW
• Output speed(r/min): 0.05 - 752
• Output Torque(N.M): Top to 18000N.m

• Fluorine rubber oil seal prevent leakage.
• Good value for money and less maintains
• Large output torque,smooth startup,high efficiency
• Noise Level: Low type 65-75 Db, Smooth and stable in run
• Material: Carburized gears & shafts and gears HRC58-62
• Working: 24 hours continuous available and shaft forward reverse
• Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.
• Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need
• Atmosphere: Well ventilated location, free of corrosive gases, explosive gases, vapors and dust.
