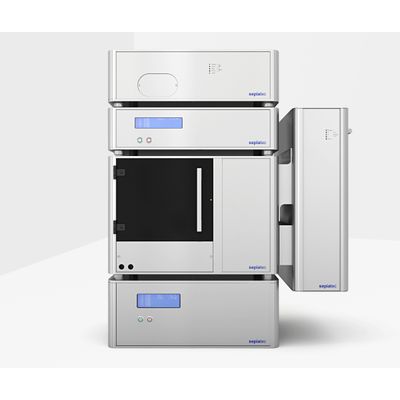

Sepmatix - Model 8x SFC -Parallel System
The Sepmatix SFC 8x parallel system combines Sepiatec’s proven parallel HPLC technology with the advantages of supercritical fluid chromatography. The result is the first SFC system with eight separating columns working in parallel, high operating speed and as yet unmatched performance. In a space of only a few minutes for example enantiomers can be separated on eight different chiral columns at the same time. The automatic variation of the eluents makes it possible to determine the optimal chiral separation in a significantly shorter time than was previously possible.
The software considerably reduces the amount of time the user needs for the selection process. The overview display is extremely suitable for presentations.
As far as the Sepmatix SFC system’s technical features are concerned, only one CO2 pump and one modifier pump are needed. Using Sepiatec’s patented FlowControl the flow is divided into eight channels and regulated exactly by electronically controlled valves.
A backpressure regulator, an autosampler, a detector with eight DAD modules and a column oven for heating or for cooling purposes are part of the standard equipment. With minor modifications the Sepmatix SFC system is also suited to chromatography using organic solvents.
On request, a Sepmatix software module is available that can automatically identify the best separations, and which can relay the applications and columns to an automated preparative system.
