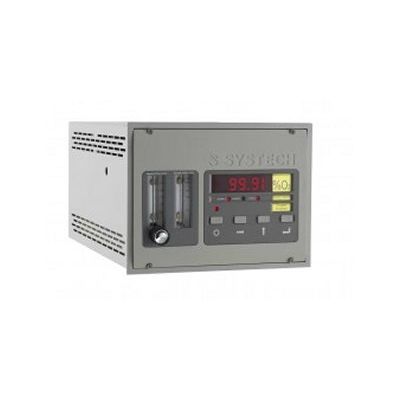

Systech - Model PM700 -Paramagnetic Oxygen Analyzer
Paramagnetic oxygen analyzers for high purity oxygen with full percent range capability. Utilising the well proven magneto-dynamic (dumb bell) transducer, the PM700 offers the best in class of high performance oxygen analysis. These highly advanced instruments incorporate user-friendly software to provide accurate and reliable results. This paramagnetic analyzer is ideal for oxygen purity measurements with autoranging from 0.01% to 99.99%. The non-depleting sensor provides years of trouble free operation.
Most popular related searches
paramagnetic oxygen analyzer
oxygen analyzer
gas mixture
explosive gas
oxygen analyzer instrument
process gas oxygen
gas analysis
industrial gas
glovebox
controlled environment
Available in four different configurations:
- Panel mounted or bench mount oxygen analzyers
- NEMA 4X / IP66 waterproof and weatherproof oxygen analysis units
- 19 in. rack mount
- UL and CUL approved Ex-proof. Sensor housing for explosive gas mixtures such as H2, Butane, CO, H2S.
- Industry: Process
- Gas: Oxygen
- Application: Industrial Gas
- Medical Gas Analysis
- Measurement range: Autoranging from 0.01 to 100% Oxygen
- Technology: Paramagnetic
- Response Time: 90% of reading (T90) less than 2 seconds
- Explosive gas mixtures: Use the Ex-Proof Sensor Housing for explosive gas mixtures such as H2, Butane, CO, H2S
- Paramagnetic sensor with PID temperature control for best in class performance
- Optional barometric pressure compensation for purity analysis
- Auto calibration option
- Large autoranging LED display
- Specific to oxygen
- Excellent linearity and accuracy
- Chemical/Petrochemical - Chemical & High purity gas production, Hydrocarbon refining, Natural gas transmission
- Curing - Electron beam, Ultraviolet
- Electronics - Solder powder production, Semiconductor furnaces, Gas quality
- Medical Gas Analysis - relevant to USP37 and European Pharmacopeia 2.5.27 oxygen in gases
- Metals - Heat treating / Annealing, Steel production, Alloys and powdered metals
- Pharmaceutical - Inert packaging, Vessel blanketing, Fermentation
- Process - Ceramics, Combustion analysis, Contact lens manufacturing, Food packaging, Glass fibre optics, Inert gas welding, Lamp manufacturing, Air separation
- General - Controlled environments, R&D, Glove boxes, Oxygen deficiency
