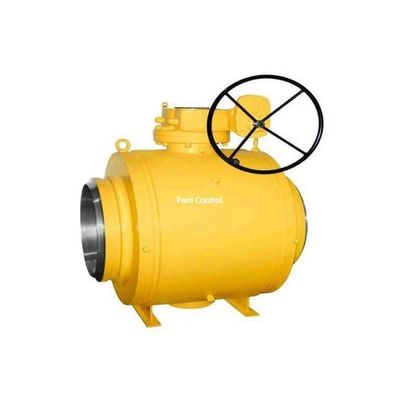

Parri - Model DN10-DN1600 -Manual Ball Valve
Fully welded ball valve is welded after sheet metal is forged and pressed. The weight is about 10-20% lighter than bolted structure ball valve, and valve volume is also small. It also reduces potential external leakage from connection of body and bonnet and improves the reliability of the valve, so it has a long service life, is the best choice for long distance transport pipes. The seat is made of a carbonized Teflon seal ring and a disc spring, so it is adaptable to changes in pressure and temperature, and does not cause any leakage within the pressure and temperature range.
The processing of the sphere is tracked and detected by an advanced computer detector, so the processing accuracy of the sphere is high. Since the valve body material is the same as the pipe material, there will be no uneven stress, and it will not be deformed due to earthquakes and vehicles passing through the ground. Fully welded ball valve can also be buried in the ground. It is not necessary to build a large valve well. It is only necessary to set up a small shallow well on the ground, which greatly saves construction costs and engineering time.
- Size: 3/8”-64”, DN10-DN1600
- Pressure range: Class150lb-2500lb , PN1.6MPa-PN42.0MPa
- Temperature: -29?~+200?
- Connection: flanged, threaded, SW,BW, BW with nipple (length can be advised by customer)
- Flow direction: Bi-direction
- Port: full port, standard port
- Optional: NACE MR-01-75, NACE MR-0103, with welding nipple (length can be advised by customer)
- Operation: Bare shaft, Lever, Gear, Pneumatic piston, Gas over oil, Electric, Electro-hydraulic
- Material:
- Cast: ASTM A216 WCB,WCC, ASTM A352 LCB, LCC, ASTM A351 CF8, CF3, CF8M, CF3M
- Forged: ASTM A105, ASTM A350LF2, ASTM A182 F11, F22,F91, F304, F304L,F316, F316L Special: 2205,Hastelloy, Monel, Inconel
- Design& Manufacture: API6D, ASME B16.34, ISO14313
- Face to Face Dimension: API6D,ASME B16.10, EN 558
- End Connection: ASME B16.5, ASME B16.47, EN1092, BS4504, GOST 33259, ASME B16.11, ASME B1.20.1, BS21, ASME B16.25,etc.
- Fire safe: API607, API6FA
- Inspection and test : API 598, API6D, EN12266
- Low leakage test: ISO 15848 TU-luft
- Marking according to :MSS SP-25
- Single welding, 2-piece welding
- Anti- blowout stem, anti-static design
- Fire safe design
- Self-cavity pressure relief
- Lock device
- Simple disassembly for easy maintenance and replacement
- Extended stem for underground use
- Available anti-corrosive coating
- Top flange according to ISO5211
- On-ff or Flow control
- Tight shut off
