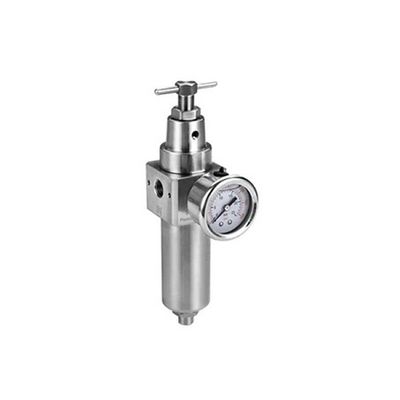

Parri - Stainless Steel Air Filter Regulator

Stainless Steel Air Filter Regulator

Stainless steel air filter regulator is usually required in petrochemical industry, because valve pipelines are laid out in the open air and corrosive environments, and stainless steel air filter regulator must be able to withstand -60 low temperature environments.

• Made of stainless steel 316, for high pressure use, corrosion and chemical resistance.
• Good performance in chemically working environments and outdoor facility (non-venting type).
• Suitable for semi-conductor industry.
• Large flow rate and effectively removes water and particle.
• Accurate and sensitive pressure setting.
• Light weight,compact size for space saving.
• High pressure resistance, low temperature resistance, corrosion resistance.

• Port size : 1/4”, 3/8”,1/2”,3/4”, 1”
• Fluid : Compressed air
• Regulator construction : Piston
• Body material : Stainless steel 316
• Bowl material : Stainless steel 316
• Pressure gauge material : Case: Stainless steel 304, thread: Stainless steel 316
• Filter element material : Stainless steel 316
• Filtration accuracy : Standard: 5μm, option: 40μm
• Operating pressure range : 0~20kgf/cm²
• Max. air input : 30kgf/cm²
• Ambient temperature : -20°C~70°C, -40°C~85°C, -60°C~85°C
• Standard lubricator drain : Semi-auto drain (Drains below 0.5kgf/cm²)
• Accessories : Pressure gauge 0-16 bar, plug, mounting bracket, screw
• Optional Accessories : Pressure gauge: 0~10bar / 0~40bar
