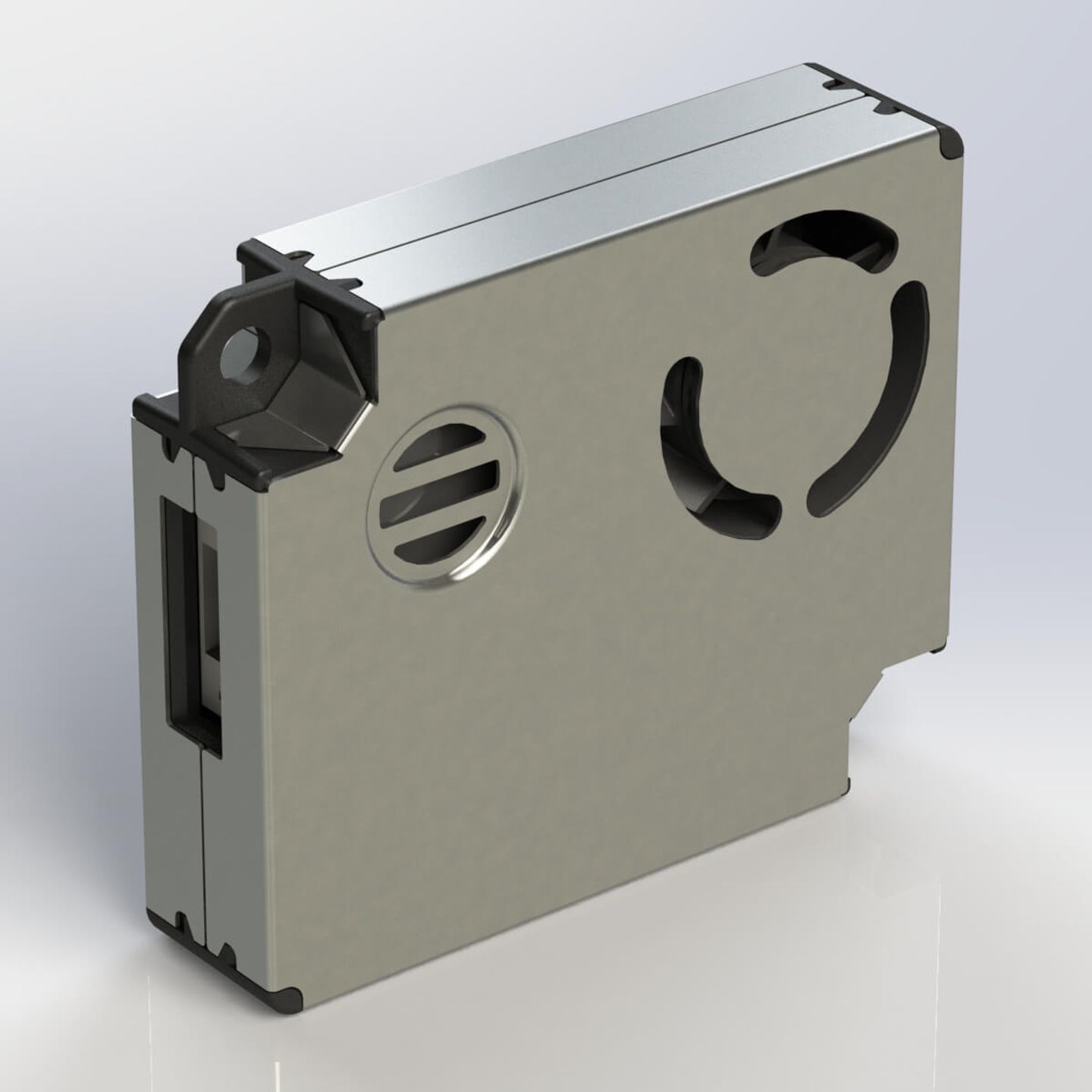

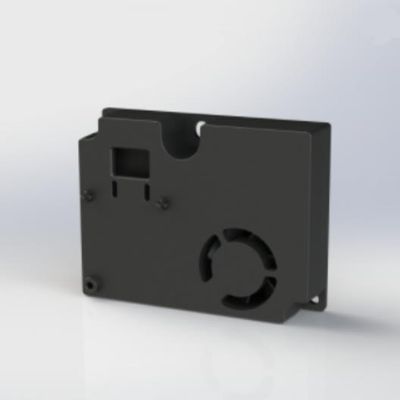

Pulse Sensor - Model PM2.5 -PS5312 -Particle Sensor

High Precision Indoor PM2.5 Laser Dust Sensor

• Model Number: PS5312
• Type: PM2.5 Air quality sensor
• Brand Name: Pulse sensor
• Theory: Principle of laser scattering detection
• Output: UART TTL, UART TTL
• Measuring range: 0-1000 ug/m3
• Power supply: DC 5±0.5V
• Features: High Precision
• Certificate: ROHS, REACH, ISO9001
• Response time: <5s
• Consistency: ≥100 ug/m3:±10%;
• Accuracy: ≥100 ug/m3:±10%;
• Temperature range: -30? - 70?
• Size: 59mm * 45mm * 14mm
• Data interface: UART TTL, 9600 bps
• Power supply: DC 5±0.5V, ripple <50mv
• working environment:
• Temperature: -15? - 60?, Humidity: 0 - 90% RH (no condensation)
• Storage Conditions:
• Temperature: -30? - 70?, Humidity: 0 - 90% RH (no condensation)
• Weight: 26g
• MTTF: ≥30000H
• Usage: Intelligence appliance, air quality monitoring, Environmental Monitoring
• Packaging Details: 70 PCS/layer, 6 layers per box, 420 PCS in total
