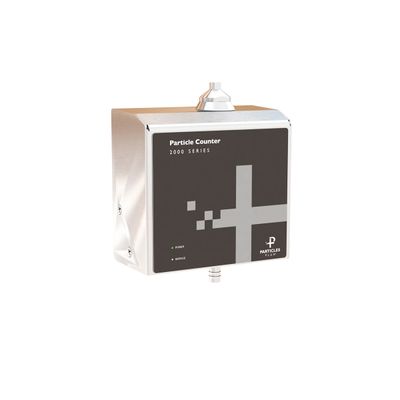

Particles Plus - 2510 Remote Airborne Particle Counter

The 2510 particle counters provide a range of particle size measurement from 0.5 to 5.0 μm at a flow rate of 1.0 CFM (28.3 LPM). These sensors allow for efficient particle counting with specifications that exceed the ISO 21501-4 and JIS B9921 calibration standards.

These sensors have 4 fixed particle size channels and are equipped with an integral critical orifice and flow sensor to provide a stable flow rate from an external vacuum source. Integration into a building automation or facility monitoring system is easy via isolated RS-485 Modbus communication.

• 2510: Measures 0.5 μm to 5.0 μm (up to 4 channels)
• 1.0 CFM (28.3 LPM) flow rate
• Long life laser diode technology
• Particle concentrations up to 1,500,000 Particles/ft3 @ I 0% coincidence loss • Internal critical orifice
• Connect using Modbus RTU/ASCII over isolated RS-485
• Complies with ISO 21501-4 and JIS B9921 standards
• Easy to clean and wipe down with minimal particle traps
• Versatile mounting options
• Alarm light
• LED Indicators
• Seamless integration into a facility monitoring system
• Lightweight stainless steel enclosure
• 2 year warranty. Extended warranties available.
