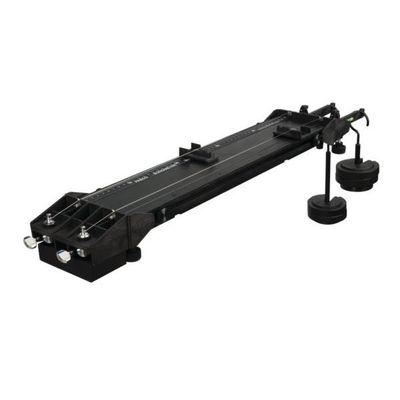

Pasco - Model WA-7428 -Sonometer for Two-String Guitar Device
A sonometer is a two-string guitar device that uses hanging weights to create tension in the strings. The two strings have different densities. The student can vary the lengths of the strings using the included bridges and a pick (included) or finger to pluck the strings. Sonometers are used to study standing waves in strings, wave speed, and musical instruments.
With this two-string guitar, students can hear the resonance modes of the strings.
- 1x Sonometer
- 2x Bridges
- 2x PASCO Guitar Pick
- 4x 0.014-inch steel string
- 4x 0.018-inch steel string
- Tuning gears for fine adjustment of string tension
- 5-to-1 tensioning lever allows the tension to be five times the hanging weight
- Scales on both sides to measure the string length to the indicator on the bridge
- Sounding board for resonating the sound of the vibrating strings
- Stainless steel string guides for durability
- Tuning Forks
- Sound Sensor
The Sonometer is an apparatus used for exploring the wave properties of vibrating strings. It includes two mounts to install strings of different linear densities onto a sounding board. String length is varied by changing the position of a sliding bridge under the string. String tension is varied by hanging masses from the lever attached to the end of the string. To vibrate the strings, pluck them with a pick or use resonance by vibrating a tuning fork. Use a sound sensor with SPARKvue or PASCO Capstone to measure the frequency of vibration.
- 1x Sonometer
- 2x Bridges
- 2x PASCO Guitar Pick
- 4x 0.014-inch steel string
- 4x 0.018-inch steel string
- Working length of sounding board: 50 cm
- Strings: Steel guitar strings with diameters 0.014-inch and 0.018-inch (4 of each type)
- Tuning Gears: For fine adjustments of the string tension
- Built-in Scales: Scales on both sides measuring the string length at the indicator on the bridge
- Tensioning Lever: 5-to-1 lever to provide tension in the string with built-in bubble level
- Maximum hanging mass per string: 3 kg
- PASCO Guitar Pick: Yellow Nylon 0.73 mm thick
