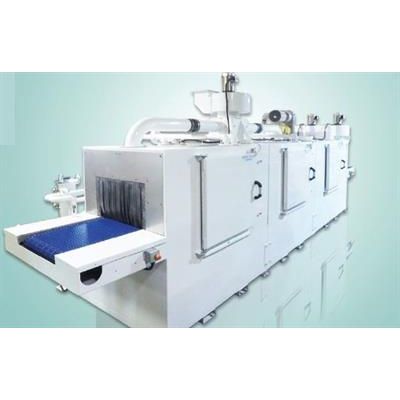

Renegade - Model I-Series 2416B WRD SS -Pass-Through Wash System
System Type: Automatic belt conveyor, 3-stage cleaning with PLC integration. Power: 230 volt, 3 phase, 15 hp wash cycle pump. Heating: 45 kw at 230 volt; 60 kw at 460 volt heaters each stage. Tank Volumes: 402 gallons each stage.
The Renegade I-Series Belt Conveyor Pass Through Wash, Rinse Dry Parts Washer delivers 3-stage continuous operation to clean and dry complex, multi-ported parts transported via inline acetal plastic or flat-wire belt conveyor operation. Each wash and rinse stage compartment contains spray manifolds with strategically-placed nozzles to deliver high pressure force and high temperature cleaning. The dry stage compartment contains a powerful air blower to remove residual water from even hard to reach cavities. Conveyor “tunnel” or "flow-through parts washers are designed for high production, repetitive cleaning operations. Stages can be configured in any order. The Renegade Modular Conveyorized Cleaning System reduces labor and increases operational efficiency for real impact on your cost of operation.
- Flow Through Wash System: 3-Stage Wash Rinse Dry
- Cleaning with Separate Wash Zone Compartments
- Washer PLC/HMI Touch Screen User-Friendly Controls:
- 7-day Timer for Heating and Skimming
- Filter Monitoring
- Low Water Warnings
- Preset Maintenance & Wash Cycles
- Temperature Display
- 230 V 3Ph; 460 V 3Ph
- Automatic Low Water Level Shut Down
- Heavy Duty, Variable Speed Acetal Plastic, or
- Flat Wire Belt Conveyor Transport System
- Rugged Stainless Steel Construction
- Max Solution Temperature 185 degrees
- Oil Skimmer for Wash Tank
- Power Vent for Fast Steam Removal
- Proximity Switches
- Debris Screen to Catch Debris Above the Water Level
- Drain and Overflow Ports
- Door Access to Each Cleaning Stage
