Pavelli S.R.L.

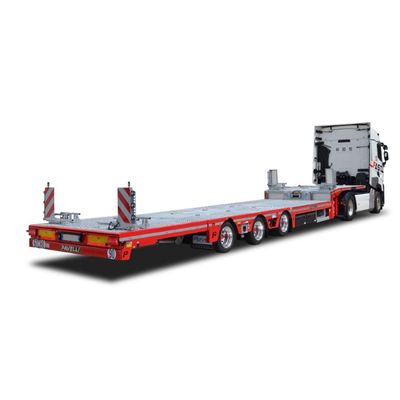

Pavelli - Model Fast -STV - Vehicles Transport
FromPavelli S.R.L.
Overview: Designed for the transport of buses, vans, trucks, heavy vehicles and machinery in general. 3-axis version with payload up to 29,800 kg depending on the configuration.
Most popular related searches
The main features are:
- BPW or SAF brand axles with drum brakes, last self-steering axle.
- Hot dip galvanizing treatment that ensures high resistance to corrosive agents and an extension of the life of the frame.
- Extendable frame of 2.5 meters with intermediate steps of 500 mm.
- Sturdy central platform that can be lifted hydraulically to load on the neck. Inside the platform there are 2 extendable lanes together with the elongation of the semi-trailer.
- Reclining rear overhang. Inside the overhang there is a hydraulic extension to be used to lengthen the loading surface and an additional 2 manual ramps to be used for loading / unloading operations.
- 8 or 10 ton hydraulic winch inside the neck.
- Remote control for safe handling of the platform, cantilever, winch, suspension.
- Hydraulic system powered by the tractor PTO pump or by a 24V electric pump mounted on the semitrailer.
- Fifth wheel height customizable according to the tractor.
- 1st lifting axle with automated system according to the load.
- Hydraulic steering on the 2nd and 3rd axis.
- On-board computer for checking the weight loaded on the axles, choice of travel heights and diagnostics of the brake / suspension system.
- Tables for protruding loads up to 3 meters wide, complete with lights and flashing lights.
- Automatic centralized greasing system.
