GeoShack Topcon - Model P-32 -Paver System

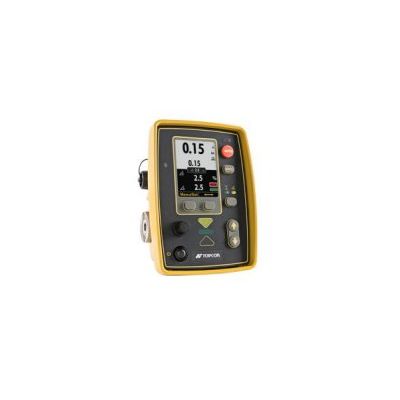

Topcon’s P-32 Paver System builds on our industry-standard Paver System 5 featuring innovations that improve smoothness, assures accurate slope and material thickness and provides unmatched operator convenience and ease-of-use. To create this next generation system we started with the control box, the screed man’s interface to P-32. The all-new GC-35 Control Box features a large (3.5”), high-contrast, backlit display clearly letting the screed man know what’s going on at a glance, on both sides of the screed if desired. The superior graphics also makes machine setup and calibration a snap. GC-35 buttons are large, sturdy and environmentally sealed. And of course, it’s completely compatible with your existing System Five sensors and Smoothtrac sonic averaging ski.

Ruggedized cables with weather protected connectors, super-accurate 100% slope capable Slope Sensor, Topcon’s patented Sonic Tracker II’s, and an optional Laser Trackerjack laser receiver demonstrates Topcon’s commitment to it’s continued leadership in asphalt paver screed control today and tomorrow.

Electrical

• Supply Voltage : 10-30 VDC
• Supply Current : 10.5A max. operating current
• Switch Output Power : 10A valve output power
• 5A sensor output power
• 10A total combined output power
• Ports : USB, RS-485, RS-232, CAN (2 ea.), External Auto Input
• EMC : Applicable regulation:
• CE, ISO 13766
• FCC Part 15 Subpart B/C ISPRII Class A: 2009
• IC: ICES-003/CISPRII Class A: 2009
• C-Tick

Physical

• Display Panel : 240×320 color TFT, enhanced brightness
• Housing : Cast aluminum
• Switches :
• 1 ea. sealed 32 position rotary encoder w/gold contacts
• 7 ea. momentary push button, elastomer over stainless domes
• 1 ea. sealed latching push button (power)
• Connectors : 3 ea MIL-C-5015 cylindrical connectors, gold plated contacts, conductive anticorrosive plated housing 1 ea. USB
• Weight : 2 lbs

Environmental

• Operating Temperature : -40°C to +80°C
• Moisture Test : 240 Hours
• Shock Test : 50G 11 ms ½ sine wave each axis
• Vibration Test : 10-400 Hz sweep 5G, 1 oct/min; 10-400 Hz random 5G each axis
• Salt Fog Test : 48 hours (ASTM B117-97)
• Valve Outputs (One Valve Output; 1 Bidirectional Hydraulic Cylinder)
• Current Controlled Proportional Mode : 0.67-4.8 Amps in 15 scale settings Programmable dither 0-105 Hz, 0-15% Sink or source operation
• Pulse Width Modulated Proportional mode / Solenoid (ON/OFF) mode : 1-13 Hz, 225-1950 Hz programmable Programmable dither 0-105 Hz, 0-15% Programmable current limit Sink or source operation
• Danfoss™ Proportional Mode : 50% available voltage as neutral, >50%=Raise, <50%=Lower

• Control both sides of the screed from either GC-35 Control Box
• Digital LCD display provides clear 3-color grade and function icons
• Rugged, field proven system and component reliability for over 25 years
• Works with most full size asphalt pavers
