Xiamen ZL Diamond Technology Co., Ltd.
Z-LION - PCD Coating Removal Tool for HTC Grinding Machine
PCD ( short for Polycrystalline Diamond ) is ideal material for coating removal as it is ultra rough. PCD coating removal tool for HTC grinding machine are designed to be used on HTC floor grinders for removing various coatings such as epoxy, glue, paint, waterproofing, adhesive and screed residues etc. This tool comes with a 1/4 PCD, a round carbide and a rectangular segment.
Most popular related searches
- Model No: ZL-PCD-16
- Size: 1/4PCD
- Material: PCD+Carbide+Segment
- Function: Coating removal
- Usage: Wet and Dry
- Connection: HTC wing plate

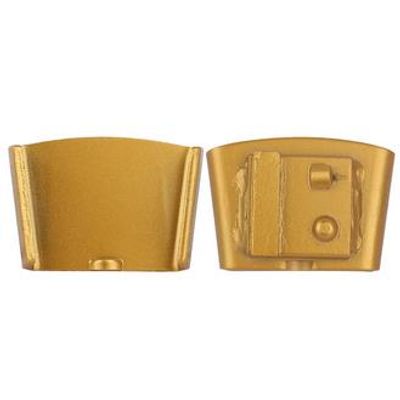

- Comes with a 1/4 PCD, a round carbide and a rectangular segment. The round carbide acts as the depth guide to help control the cutting depth. The rectangularsegment actsas the wear bar to stabilize the tool, and to do the thin coating removal and the rough grinding in one pass. The PCD to remove various coatings such as epoxy, glue, paint, waterproofing, adhesive and screed residues etc.
- Comes with HTC wing plate for fitting on HTC grinding machines.
- Adding an extra piece of metal on the top of HTC wing plate to hold the PCD, carbide and segment, making the tool stronger.
- The rectangularsegment is a little lower than the PCD to ensure the tool works efficiently and smoothly.
- Clockwise and counterclockwise rotational direction are interchangeable to fit planetary floor grinders.
- PCD coating removal tool is the most aggressive grinding tool for removing coatings from a concrete floor that is going to be polished.
- The special features of the tool are as follows:
- Premium quality PCD ensures maximum wear and productivity for aggressive removal of coatings.
- A round carbide inserted to control the cutting depth, removing coatings without gouging concrete overly.
- A support segment inserted to grind away gauge marks, removing coating and providing a conventional grind in one pass.
- PCD, carbide and segment are professionally welded, extending lifespan of the tool.
- Clockwise and counterclockwise rotational direction can be marked on the tool for the operator to pick up the correct tools quickly.
- Special Wing plate fits HTC grinders perfectly. A rubber hammer is enough when to install and uninstall the tool.
- HTC coating removal tool is widely used for concrete floor preparation. Comes with HTC wing plate to be used on HTC floor grinders for removing various coatings such as epoxy, glue, paint, waterproofing, adhesive and screed residues etc.
