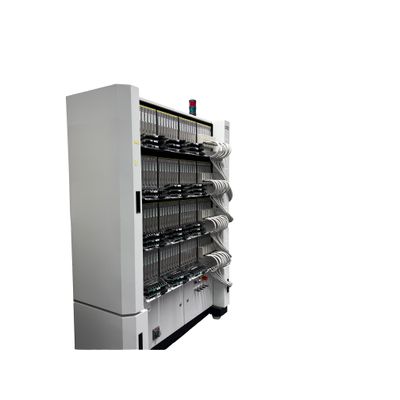

PEC - Model CT0501 -Cell Test System
FromPEC
The CT0501 is a 1024-channel low power cell tester, ideal for high volume testing R&D coin cells, single layer pouch or 18650 cells in cell development and QC labs. This test equipment can be used in several areas, from cell formation to quality control and lifecycle testing.
Most popular related searches
pressure sensor
temperature sensor
laboratory testing system
laboratory testing
digital pressure sensor
laboratory equipment
- Preparing a test can be done off-line on a PC or Laptop, running our LifeTest™ application. The end user can configure specific test profiles with cell dependent parameters. The LifeTest™ application communicates with the cell tester over Ethernet to load the test conditions and upload the measurement data.
- Due to the high-volume architecture tests are started per test board of 8 cells. Although the Test Regimes are common for the board, channels are controlled individually.
- The channels use Linear Power Mosfets to obtain a very high accuracy and speed. 1024 channels of 5V, 500mA are mounted in 1 test rack.
- The system comes standard with 3 selectable current ranges to fit the current requirements of the cells to be tested. Optionally, you can add analog and digital in-and-outputs to the system using the PEC auxiliary I/O modules (e.g. temperature sensors, voltage inputs, pressure sensors, digital output etc.)
- The system supports current, voltage, power and resistive based loads, with a minimum pulsing width of 10 msec. Our CT0501 system will give you ultra-fast switching capabilities between charging and discharging modes, guaranteeing the accurate simulations you need.
