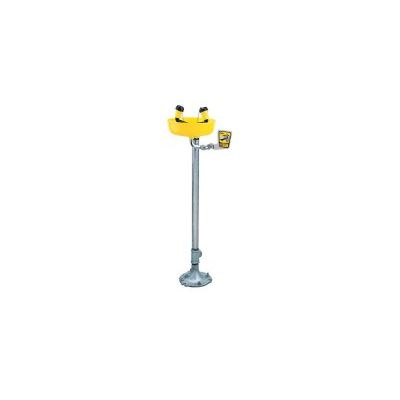

Encon Yello-Bowl - Model 3.2 gpm ABS -Pedestal Mount Fountain

Encon`s Pedestal Mounted Eyewash can be configured with either an ABS Yello-Bowl or SS Bowl. The piping is configurable with SS, Galvanized or PVC.

Most popular related searches

Here are additional features:

Piping, Valve & Pedestal Choices

1/2" BCP piping; 1/2" CP bronze stay-open ball valve with CP ball; SS valve stem; SS push plate with actuation graphic; schedule 80 galvanized steel pedestal.
1/2" PVC piping; 1/2" CP bronze stay-open ball valve with CP ball; SS valve stem; SS push plate with actuation graphic; PVC pedestal.
1/2" SS piping; 1/2" CP bronze stay-open ball valve with CP ball; SS valve stem; SS push plate with actuation graphic; SS pedestal.

Eye/Facewash Choices

EW

ABS plastic heads, wye and float off covers secured with SS bead chans; self adjusting regulator to flow at 3.2 gpm (12.1 lpm).*
Acetal heads with hinged covers, BCP wye; self-adjusting regulation to flow at 2.4 gpm (9.1 lpm)*.

ABS plastic heads, wye and float off covers secured with SS bead chans; self adjusting regulator to flow at 8.0 gpm (30.3 lpm).
ABS plastic heads and float off covers secured with SS bead chains, BCP wye; self-adjusting regulator to flow at 8.0 gpm (30.3 lpm)*.

Bowl

ABS plastic Yello-Bowl 10.8" diameter.
304 SS bowl, 10.6" diameter

Supply - 1/2" NPT connection
Waste - 1-1/4" NPT connection
Ship Weight - 25 lbs (11.34 kg) With Add-on Accessories, weight will vary.

* Varying hydraulic conditions of 30 to 70 psi (206.8 to 482.6 kPa)

Yello-Bowl, 3.2 gpm ABS EW

Bowl Type: ABS Plastic Yello-Bowl
Mounting: Pedestal Mount
Fountain Type: 3.2 gpm ABS EW Heads & Wye
Special Features: ABS Float-Off Head Covers with SS Bead Chain, Hi-Viz Bowl - 10.8" Diameter
