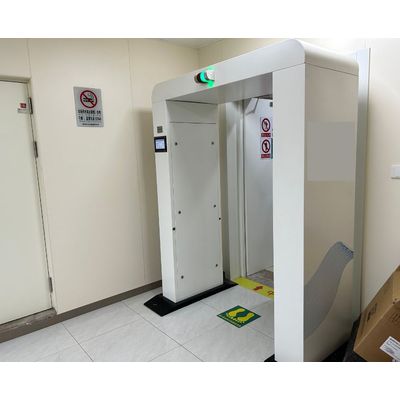

Zytekno - Model G2 -Pedestrian Radiation Portal Monitor
Parameters: Type of registered radiation Gamma Detector Gamma: 2 x 15L plastic scintillators Neutron: 3He proportional counter (optional) Monitoring Area Height 1.5m (dual-sided detectors) Energy range Gamma: 20keV ~ 3MeV, Neutron: 0.025eV ~ 14MeV (optional) Sensitivity Gamma: Alarm within 1 second for a 0.04μSv/h increase (background level at 0.2μSv/h) Neutron: Alarm rate > 98% when a 252Cf source of 2×104/s passes through the detection area at a speed of 1.2m/s Shielding 3mm thick lead shielding on non-detection surfaces to reduce background False Alarm Rate ≤ 0.1% Standard Pedestrian Passing Speed 1.2m/s Power supply method 110 (90-132) V AC or 220 (180-264) V AC, 47-63 HzMost popular related searches
radiation detection system
mobile radiation detection system
radiation portal monitor
neutron detection
radiation alarm
radiation detection
gamma detection system
portal monitor
radiation portal
gamma radiation detection
Features:
- Standard configuration includes 2 large-area 15L plastic scintillation detectors.
- Optional high-definition camera for real-time image display of pedestrian passage, with automatic or manual snapshot capture.
- Real-time dynamic background monitoring ensures that the alarm threshold dynamically updates with background fluctuations.
- Features audible and visual alarms with manual control over the alarm activation.
- Automatic radiation alarm and automatic storage of alarm data, along with automatic storage of measurement logs.
- Supports multi-point deployment and remote operation.
- Optional 3He neutron detector is available.
- Complies with GB/T24246-2009 standard requirements.
- Customs checkpoints
- Large-scale events and venues
- Airports
- Ports
- Environmental protection agencies
- Nuclear power plants
