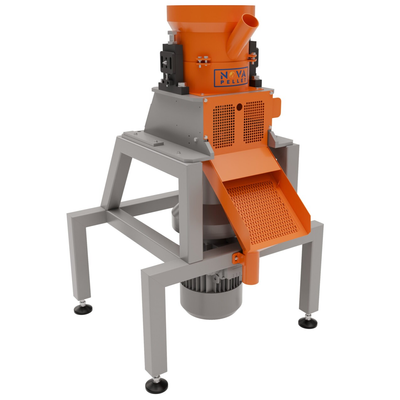

Nova - Model N-Pico -Pellet Mill

Technological Innovations

• Compact and Solid Structure: Designed for long-lasting durability, with reduced dimensions that facilitate installation and use in limited spaces.
• External Adjustment of Pressure Rollers: Allows for the positioning to be adjusted during operation, without the need to stop the machine.
• Horizontal Die: Easy to replace and with low wear levels, equipped with interchangeable rings to customize the compression length and handle materials with different hardness.
• Precise Dosing: Via a vibrating disc and optional loading mini-silo with manually adjustable shutter.
• Optional Additivation: Mixing system for water and air to humidify the raw material through misting water, ensuring maximum operational flexibility.

• Accessible to All: The N-PICO makes pellet production accessible to anyone, enabling the use of personal materials to generate pellets that can be sold on the domestic or industrial market, or for self-consumption.
• High Quality Without Additives: Pellet production occurs without any additives or binders, either natural or synthetic, ensuring a natural and safe product.
• Reduced Operating Costs: Thanks to its innovative design, the N-PICO ensures low maintenance and production costs, offering excellent value for money.

• Operating System: Mechanical and electric, with manual adjustment of pressure rollers for perfect positioning on the compression die.
• Loading and Dosing: Material loaded through a hopper with adjustable manual shutter (optional), ensuring a constant and controlled flow.
• Die and Production: Variable compression hole length from 12 to 60 mm, depending on the material to be pelletized (sawdust or agricultural/vegetal waste).
• Pellet Evacuation: Via a grated chute, facilitating the collection and management of the final product.
• Lubrication and Maintenance: Standard manual lubrication, automatic with an electric pump available upon request, with the possibility of adding vegetable oil at the beginning and end of the cycle to prevent hardening of residues.
• Safety: Protective covers for moving parts and provision for dust extraction connections for safe and efficient operation.
• Certification: Designed and built according to European directives to ensure safety and compliance, complete with an operating and maintenance manual and CE certification.
