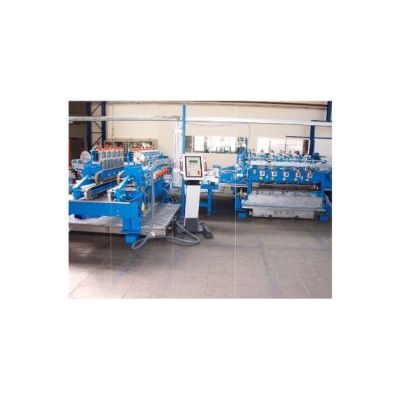

Benteler - Pencil-Edge Grinding Machine

High precision:

• Good grinding results also for large raw glass tolerances
• Machine frame and components of especially stable design for low vibration glass processing
• Precise width adjustment with fully automatic support bars for the exact
• Positioning of the glass edges, also for large glass widths

Flexibility:

• Up to five grinding spindles for each side, therefore more flexible setup with a large application range
• Flexible design with a wide range of application
• Optional with an automatic glass thickness adjustment

Process reliability:

• Completely encapsulated high-precision grinding spindles with long service life in wet and abrasive environments

Simple operating:

• Automatic side and angle orientation to prevent unground glass surfaces and burns
• Two synchronous motors for the transport and pressure belt support of each spindle for exact glass carriage and for rapid belt exchange
• A design with vacuum instead of pressure belt for the glass fixation is also available for glass processing without contact of the glass surface and the improvement of subsequent surface coatings
