Pagani - Model DPM30-20 -Penetration System

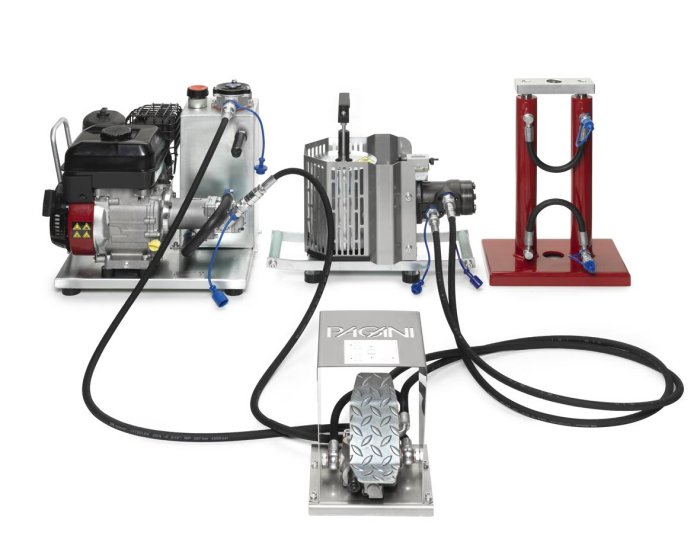

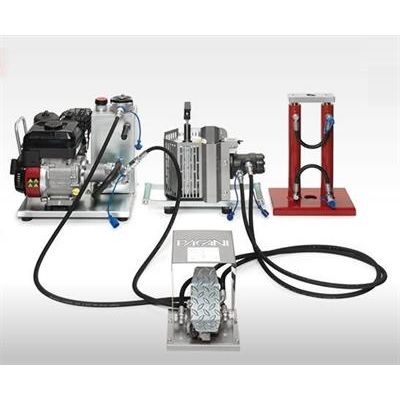

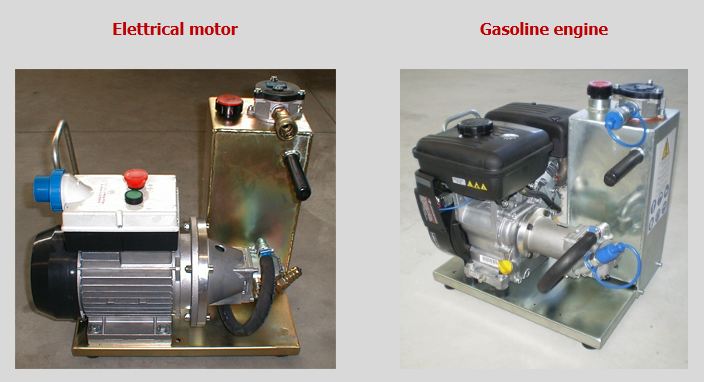

Dynamic penetrometric tests in a portable device. The DPM30 penetrometer allows exclusively continuous dynamic penetrometric tests to be performed. For the dynamic tests, the penetrometer is equipped with a 30 kg (66 pound) hammer with a 200 mm (7.87 inch) stroke, operated by a hydraulic motor. It is driven by a motor-pump unit, where the motor can be either electric (220v or 110v) or a petrol engine. A hydraulic extractor is used to extract rods, lining tubes and samplers. The penetrometer is controlled via a pedal-operated distributor. The hydraulic connections on the various components use quick connectors. Reliability proven by hundreds of units operational within Italy and around the world.
