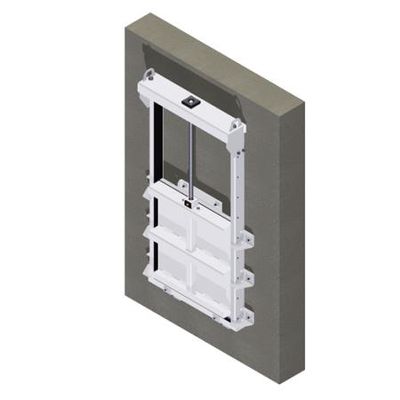

Saint-Dizier - Model VMV-T Ø 200 to 800 -Penstock
Closing off the sanitation networks with an upstream and downstream seal for a pressure of 7 mCE. Isolation of networks in the presence of pollution or flooding.
Most popular related searches
Advantages
Seal up to 7 m of water with a maximum leakage rate of 0.0083 l/s per ml seal, in compliance with standards BS7775 and DIN 19569-4
- Durability: 304 L stainless steel
- Seal: EPDM lip seal, with upstream and downstream seal
- Easy integration: threshold erasure
- Accessories included: fastening kit comprising chemical screws and 316L stainless steel bolts and a seal to be placed on the frame
- Warranty: operating test conducted in the factory before shipment
- 10-year Warranty via insurance supplemented by an EPERS
Design
- Construction (scoop, fastening plate and sliders) made of 304L stainless steel
- Threaded rod made of 316L stainless steel
- EPDM seal, embedded in the frame
- Non-rising stem with protective tube, and half-moon connection
Operation
The penstock VMV-T, made from 304L stainless steel makes it possible to isolate a sanitation network with a screw with a non-rising stem made of 316L stainless steel with a half-moon connection by guaranteeing an upstream and downstream seal up to 7 m CE.
It can be controlled with a crank, manoeuvre key, flywheel or by motorisation.
Options
- Stainless steel extension and wall supports to be anchored - XTA011 to 019
- Control via crank - XTA0032, manoeuvre key - XTA002 to 004, flywheel - XTA005 or by motorisation - SAM07.6
- Assembly and commissioning - MO
