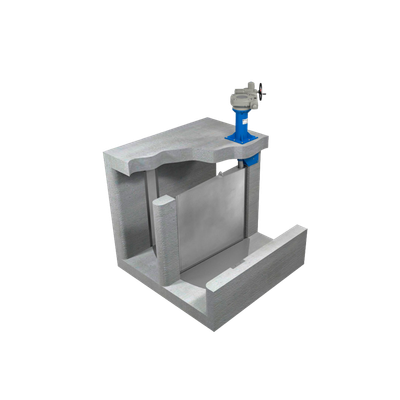

CMO Valves - Model CG Series -Penstock Flow Diverter

The Penstock Flow Diverter from CMO Valves is engineered for precise flow management in industrial applications, particularly water treatment facilities, irrigation systems, hydroelectric plants, and channels. This rotating penstock is designed for installation in rectangular or square canals, and is suitable for managing flows of clean or sediment-laden liquids. The design features a supporting wheel to minimize the lever effect on the rotating axle. Custom sizing from 500x500 mm to 3000x3000 mm is available, and larger dimensions can be discussed with the manufacturer. Sealing materials can be customized to meet specific needs. This penstock is integrated into concrete or anchored on walls via expansion or chemical means to ensure stability and reliability. It adheres to European directives for construction and operation, with adjustable maximum working pressures according to project requirements.

Revolving door FLOW DIVERTER

Penstock designed to divert flow.
Panel designed with supporting wheel to reduce lever effect on rotating axle.
Bespoke penstock design – square or rectangular.
Various sealing materials available.
Designed to be embedded in concrete or supported on walls using expansion or chemical anchoring means.

Utilization

Rotating penstock designed for installation on canals. The canal area may be rectangular or square and this penstock can have seals on 2 or 3 sides since it is designed to divert the flow. It is suitable for working with clean liquids or liquids loaded with solids.
Mainly used in water treatment plants, irrigation, hydroelectric plants and channels.

Designed for applications such as:

Water treatment plants.
Irrigation.
Hydroelectric power stations.
Conduits

Sizes

From 500 x 500 to 3000 x 3000.

Greater dimensions under consultation.

To know the general dimensions of a specific wall gate, consult CMO Valves.

Working pressures

The maximum working pressure is adapted to the client’s needs in each project.
These gates are designed to meet the service conditions according to the work where they are going to be installed.

Directives

APPLICATION OF EUROPEAN DIRECTIVES
(See document of EUROPEAN DIRECTIVES APPLICABLE TO CMO VALVES)
