PEPI Monsoon - Model Mini XL 60 -12 Stainless Steel Pump

• Designed for the field professional
• The most economical and simple solution for a wide range of surface and groundwater applications
• Lightweight
• Simple to clean and decontaminate
• Simple and easy to use
• Most reliable and lowest maintenance pump on the market for pump tests, remediation, monitoring, and liquid transfer
• User intuitive
• Improve time management and save money by eliminating archaic, bulky, and expensive equipment
• Reliable, rugged, and economical engineering provides healthy return on investment
• Eliminate rental fees and rush shipment costs
• Provides Peace of Mind when coupled with Proactive® autonomous pump control systems for woman/man less operation
• Proven to cut-out a vast amount of health and safety pages
• Look like a PRO when your clients see how much money you save them by incorporating Proactive® Stainless Steel Mini Monsoon® XL 60 Pumps

• Designed for 2” schedule 40 and 80 and larger diameter wells
• Submersible single stage centrifugal style pump
• No Controller or booster required with this pump
• Consistent flow rate at 12.5 DC volts output to the pump
• Hardworking pump with computer engineered bottom debris filter screen allows operation under harsh conditions with higher turbidity
• Field ready right from the box
• Auto-Priming so in the event of a power outage the pump restart is at same pump setting
• Sleek dome shape construction minimizes well hang-ups
• Comes with 90 feet of 10 gauge wire that can be cut to desired length
• Can run continuously in water without the need for a cool down
• Stainless Steel Mini Monsoon® XL 60 motor modules provide 400+ hour life. True life expectancy of the motor module is around 1,000+ hours and varies upon application and conditions in the well
• Eliminate downtime with the incorporated Proactive Environmental Products® Patented (#7584785) quick change motor module technology
• Required tubing size: 3/8”id x ½” od
• PFO/PFA free
• Warranty: Manufacturer 60 days on parts and labor

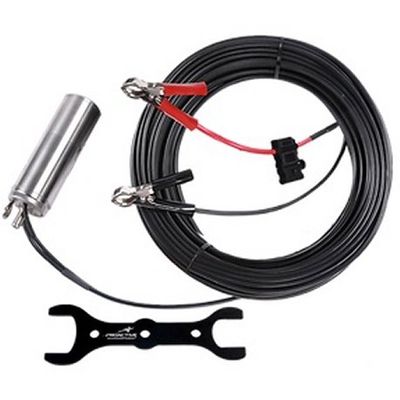

Stainless Steel Mini Monsoon® XL 60 Pump ships individually boxed and labeled providing pump model and pump serial number. Each pump includes:

• Pump complete with 90 feet of 10 gauge wire installed
• Stainless Steel eye hook mounted on top of pump head for suggested, but optional suspension cable
• One installed field-ready motor module
• One Proactive® dual purpose wrench
• Alligator clamps installed on wire
• 30 amp breaker installed on wire


The Stainless Steel Mini Monsoon® XL 60 Pump consists of 4 components: The 3 Pin Bayonet Motor Module Connector, Replaceable Motor Module, Outside Stainless Steel Housing with Stainless Steel Bottom Inlet Filter Screen (Assembled as One Unit), and the Pump Wire

• WATT CONSUMPTION (MAX): 150 WATTS (MAX)
• DC VOLT RECOMMENDATION: 12-15 DC (direct current) At Source
• AMP CONSUMPTION (MAX): 10 AMPS
• MEASUREMENTS: LENGTH 7.5" / DIAMETER: 1.82"
• REQUIRED TUBING: 3/8" ID X 1/2" OD TUBING
• SUPPLIED WITH: 90 FEET OF HEAVY DUTY 10 GAUGE WIRE WITH ALLIGATOR CLAMPS
• PUMP CONSTRUCTION: STAINLESS STEEL
