AMI - Model 65 -Percent Oxygen Analyzer
The MODEL 65 is is a Percent Oxygen Analyzer for non-flammable gases in a general purpose environment. The unit functions as a standalone sensor and utilizes zirconium oxide sensor technology to deliver reliable readings that are not affected by barometric or temperature changes.

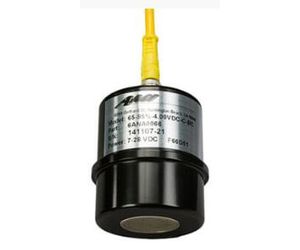

Model 65 Percent Oxygen Probe
The MODEL 65 Percent Oxygen Probe is a perfect low cost, rugged, compact solution for OEM applications or integration into control systems for general industrial processes. The unique zirconium oxide sensor in this probe provides a 10-year life expectancy. The probe is designed for measuring percent oxygen levels exclusively in NON-FLAMMABLE gases. The Model 65 is simple to mount indoors or outdoors and provides a very accurate, stable, long life, linear analog output signal over a 0-25% range. Optional output are ranges also available.
Incredible Value
The MODEL 65 is designed to be integrated into an operator’s system and function as a standalone oxygen sensor. It is virtually maintenance free, extremely accurate and stable over a wide temperature range (0-130 0 F) and immune to changes in barometric. Additionally, it uses a unique zirconium oxide sensor with a 10-year life expectancy, requiring only annual calibrations.
Perfect Percent Oxygen OEM Solution
The MODEL 65 is ideal for OEM applications measuring percent oxygen levels in inert gases, such as: gas blanketing, nitrogen/oxygen generators, refrigeration units and many others. At only 2.0” long x 2.2” in diameter (51mm x 56mm), this dependable, rugged, compact probe can virtually be mounted anywhere.

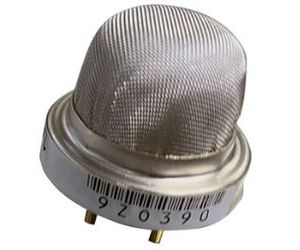

- Accessories: Zirconium Oxide Sensors (note: sensor is not field replaceable)
The AMI model 65 is the ideal solution for measuring oxygen in non-flammable gases in a general purpose environment. In a very small size, and at very low cost, it provides a basic electronic package with a single range voltage output (isolated current output optional) together with a zirconium oxide sensor that has an expected ten year life, with virtually no calibration required.
- Percent oxygen in non-flammable samples
- General purpose self-contained oxygen sensor
- Extremely stable, long-life sensor
- Virtually unaffected by temperature changes
- Virtually unaffected by barometric pressure changes
- Virtually unaffected by humidity changes
- Virtually unaffected by flow rate changes
- Calibration interval 6 months
- Very small size
- Standard 0-1V output
- Isolated 4-20mA output optional
- RS232 communications optional
- Very low cost
Traditional electrochemical oxygen analyzers suffer from poor stability, requiring monthly calibration and frequent sensor replacement, and they suffer from sensitivity to both temperature changes and barometric pressure changes. Their reading can change by as much as 10% when a weather change occurs. The AMI model 65 suffers from none of these issues. It has been tested over a temperature range of 0°F to 130°F.
Its sensor is unaffected by flow rate changes over the range of 0.1 to 5 SCFH.
The model 65 is designed for integration into a user’s system as a stand-alone oxygen sensor. In standard form, it provides a voltage output of 0-2.5V corresponding to 0-25% oxygen, while requiring only about 3 watts of power. A built-in microprocessor controls the sensor heater and automatically linearizes the sensor output. Since the sensor is non-depleting the unit may be stored indefinitely in a power off state without worrying about sensor life issues. In many cases it may be used with no calibration required over its entire life. Since the unit is not flow rate dependent a simple sample system is normally adequate, or it may be specified with a diffusion screen for ambient applications.
Optional ranges of 0-50% and 0-95% available.
Typical applications:
- Nitrogen purity
- Inert gas blanketing
- Produce blanketing
- Oxygen deficiency in enclosed spaces
- Oxygen purity
- Refrigeration units
- Refrigerated trucks
- Produce trailers

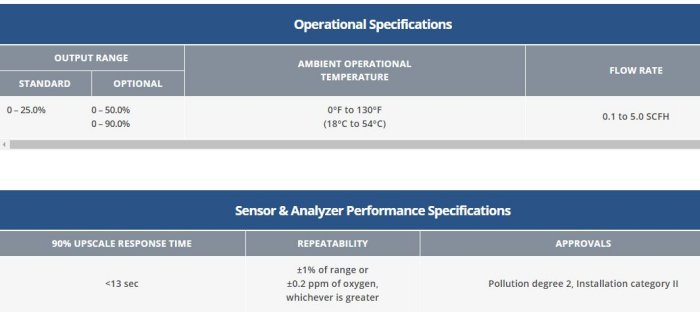

- Standard ranges:
- Single range: 0 - 25% (0 – 50%, 0 - 95% optional).
- Sensitivity: 0.5% of full scale.
- Repeatability: +/- 0.1% of full scale at constant temperature.
- Operating temperature: 0°F to 130°F.
- Humidity: < 85%, non-condensing.
- Operational conditions: Pollution degree 2, Installation category I I.
- Drift: < +/- 1% of full scale in 4 weeks at constant temperature.
- Response time:
- 90% of full scale < 13 seconds.
- Outputs: 0 - 2.5 VDC (4-20mA optional).
- Power requirements: Between 7 and 28 VDC (nominally 24VDC) Typically 250 mA at 12Vwith no external draw from the 5V supply. Current draw is higher at lower voltage and lower at higher voltage.

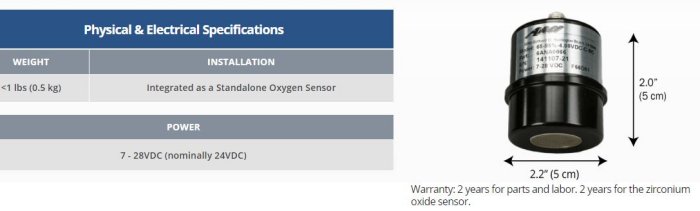

- Dimensions: 2.15 Dia. x 2" high (not including fittings or leads).
- Weight: less than 1 lb.
- Warranty: 2 years parts and labor.
- Sensor warranty: 2 years.
- 0-50% range
- 0-95% range
- 4-20mA output
- Diffusion screen
- Barbed fittings
- Compression fittings
