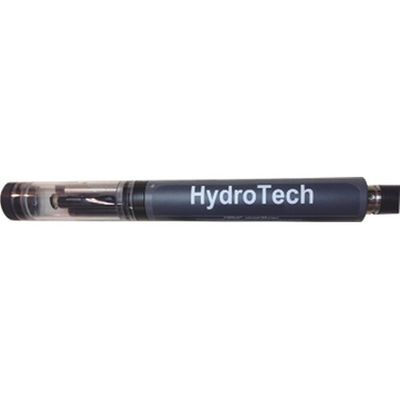

HydroTech - Model Compact MS (CMS) -Perfect Multiprobes for Spot Checking
Compact MS: Is only 17” long and 1.75" in diameter, which makes it very portable. Supports SDI-12 communication protocol. It will easily connect to a datalogger like Sutron®, Handar®, Waterlog®, or any datalogger that uses SDI-12. Supports RS232 communication protocol. It will easily connect to a PC or PDA.
Most popular related searches
surface water monitoring
temperature sensor
optical dissolved oxygen sensor
ORP/redox
surface water
conductivity sensor
water monitoring
dissolved oxygen sensor
thermistor temperature sensor
optical oxygen sensor
Measures up to seven parameters simultaneously:
- Temperature in °C and °F,
- SpConductivity in µS/cm and mS/cm
- Salinity in ppt
- pH
- Dissolved Oxygen in % saturation and mg/l
- ORP (Redox) in mV
- Total dissolved gas “TDG” mmHg
The Temperature sensor is a 30k ohm variable resistance thermistor.
The temperature sensor is included with every Compact sonde.
- Range: -5 to 50 °C
- Accuracy: +/- 0.10 °C
- Resolution: 0.01 °C
Optical Dissolved Oxygen sensor. Hach LDO sensor:
- Range: 0 to 20 mg/L
- Accuracy: +/- 0.1 up to 8 mg/L ; +/- 0.2 above 8 mg/L
- Resolution: 0.01 mg/L
The Conductivity sensor uses four graphite electrodes in an open cell design.
- Range: 0-100 mS/cm
- Accuracy: ± (0.5% of reading + 0.001 mS/cm)
- Resolution: 0.001
- Size: Outer diameter: 1.75”/4.4 cm
- Length: 17”/43.18 cm
- Weight: 1.5 lbs/0.68 kg.
- Computer Interface: RS-232, SDI-12 and RS-485
- Memory: 120,000 measurements
- Operating Temperature: -5 to 50 °C
- Maximum Depth: 200 m
