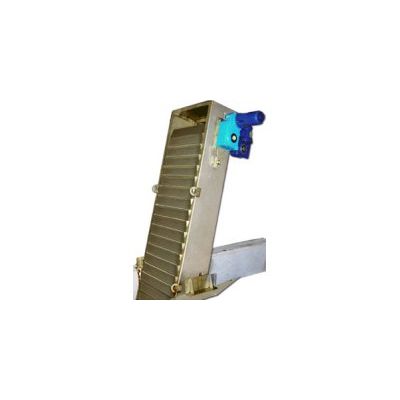

Screenmaster - Model SP -Perforated Plate Wastewater Screen
The Screenmaster SP is a precision constructed fine screen which removes a remarkable amount of wastewater screenings from channel installation in municipal and industrial wastewater applications. This unit features specially design perforated plates that provide efficient fine screening. The SP can be easily installed directly in-channel even in tight plant locations. Models are available to process flows up to 95 mgd (15000 m3/hr) with screen perforations from 1/8" - 1/4".
How it works: The unit`s stainless steel perforated bands (panels) screen and capture the debris entrained in the wastewater. The movement of these bands conveys the solids up towards the discharge chute. Once the headloss reaches a preset level, the panels are automatica-lly cleaned by an independently operated rotating brush. The screen may also be controlled by a timer or based on a duty/stand-by cycle. This unit`s design ensures high extraction rates with minimum head loss.
