AquaFence -Â Perimeter Protection Flood Wall System

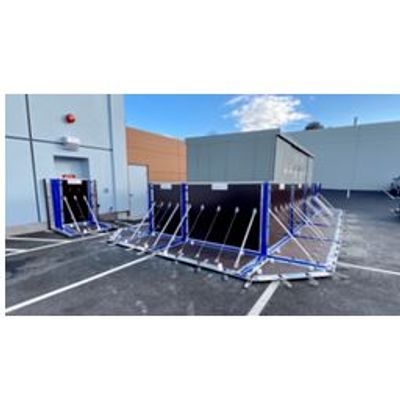

The FloodWall system can surround buildings, facilities, critical assets, or multiple blocks, without any contact to the building itself. In most urban environments, the system can be used without any advanced site work.
FloodWall can be used to encircle properties ranging in size from single plots of land to entire cities. In most environments, this flood barrier can be used without any advanced site work.
Self Stabilizing Design
The AquaFence FloodWall harnesses the downward pressure of the floodwaters to create a self stabilized design. This allows the system to be deployed without any structural alterations to the building or hardscape. As flood waters increase, the system is strengthened.
After a flood event, simply rinse the FloodWalls before returning them to storage. This clean, no fill, design lends itself to be stored, rapidly deployed, and removed without any waste creation. Certified re-usability more than 60 times.
Teams of three or four can install +/- 100 linear ft. of FloodWall per hour.
Crates can be strategically positioned so FloodWalls easily slide out at the areas of deployment.
Custom solutions are available for the challenges properties’ face, including elevation changes, curbs, structural obstacles, spacing, debris, and others.
No hydrostatic loads transferred from the FloodWall to the building or structure.
A simple, repeating, connection between FloodWalls leads to a quick and easy installation.
Anchoring
Tie-down anchors are recommended for all FloodWall systems and help secure FloodWalls during dynamic conditions, such as wind and waves.
When not in use, Anchor Holes are covered with caps.
Each panel is individually self-stabilized by the weight of the water, so no additional fill materials are needed.
Four people can install +/- 100 linear feet per hour.
Certified Reusability more than 60 times.
FloodWalls modular design allows egress for continued business operations when deployed.
All components are connected to the FloodWall itself and stored flat in reusable crates.
