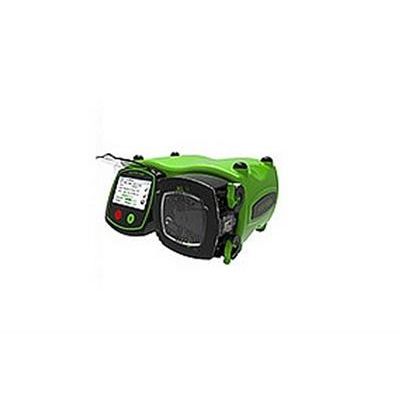

Verderflex Vantage - Model 5000 Remote -Peristaltic Cased Drive Tube Pumps
The Verderflex Vantage 5000 Remote is the next generation in remotely controlled cased drive tube pumps combining precision dosing and dispensing accuracy with high discharge pressures, an intuitive touch screen user interface and a USB data backup port. Control signal inputs & outputs include 0-10V, 4 to 20mA & proportional flow modes, 7 control volt free inputs & 4 volt free status outputs.
Most popular related searches
peristaltic cased tube pump
cased tube pump
tube pump
peristaltic tube pump
peristaltic pump tubing
peristaltic pump tube
pump tubing
peristaltic tube
mineral processing
pharmaceutical water
- Max. flow rate: 6600 ml/min
- Max. (discharge) pressure: 7 bar
- Turn down ratio: 4096:1
- Protection Standard: IP66 & NEMA 4X
- Display & Programming: Intuitive 110mm Full Colour Touch Screen LCD
- Dosing Program Backup: USB v2 dataport
- Analogue Input rating: 0-10V, 4-20mA, Frequency
- Analogue Outputs rating: 0-10V, 4-20mA, Frequency
- Control Inputs: 7
- Status Outputs: 4
- Main Menu Access: 5 Password protected accounts
- Tube Failure Detection : Standard
- Maximum Pump Speed: 400 rpm
- Power Supply rating: 85-265V 50/60Hz 1 Phase
- Brewery
- Chemical dosing
- Food flavouring
- Mineral processing
- Pharmaceutical
- Water treatment
