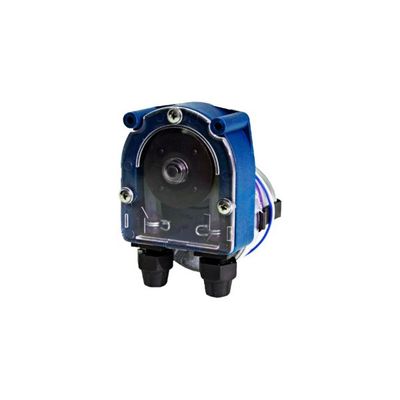

Etatron - Model F Series -Peristaltic Chemical Dosing Pumps
FromEtatron GB Ltd.
The F Series is perfect for OEM’s looking for compact and reliable peristaltic dosing pumps. A compact peristaltic chemical dosing pump with a constant flow rate, designed for discontinuous use. The F Series of Peristaltic Pumps feature flow rates from 0.5 L/H to 6 L/H. With the F model operating at a constant flow rate and the F-T model featuring timer settings.
Most popular related searches
chemical dosing pump
peristaltic dosing pump
dosing pump
chemical dosing
peristaltic pump
peristaltic tube
chemical pump
thickness monitoring
polypropylene filter
OEM pump
Compact and Lightweight
The F Series is a small, reliable chemical dosing pump.
Made for OEM companies
A simple pump, pefect for the OEM market.

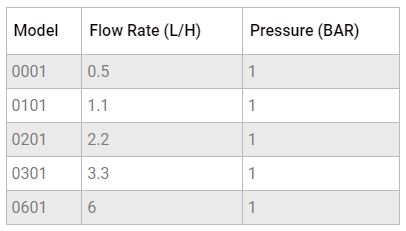

- Flow rates of up to 6 L/H
- Maximum operating pressures of 1 bar
- 230v power supply as standard
- Optional 120v, 12vdc, 24vac, 24vdc power supplies (only available for certain models)
- Peristaltic tubing available in Santoprene or Silicone
- Wall mounted with removable gearbox/motor for panel mounting
- Available with additional accessory kit (includes injection valve, foot filter and suction & discharge tubing)
- Minimum Order quantities of 12.
- Constant flow rate
- Santoprene® or silicone peristaltic tubing
- Peristaltic tubing is fitted with SS clamps
- The hydraulic head is independent of the motor and can be supplied separately.
- Inter-axis holes: 42 mm – 1,65”; anchoring panel thickness measure from 1 to 4mm – 0,04 to 0,16”
- NSF® certified version available
- Designed for discontinuous use
- Peristaltic Injection Valve: PVC-FPM (also available in AISI and/or with EPDM seals)
- Standard Foot Filter: PP-FPM (available with EPDM seals)
- 2m Suction & Discharge tubing
