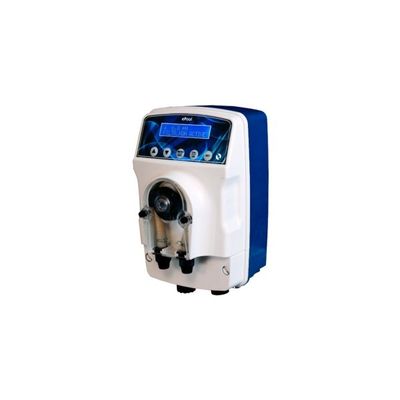

Etatron - Model ePool RX -Peristaltic Chemical Dosing Pumps

Perfect for the Leisure Industry
Serving domestic pool customers in the Leisure Industry.

Energy Efficient
ePools have an operating range of 6 –10 W energy consumption.

The ePool series of peristaltic dosing pumps are perfect for the leisure industry and feature in built pH and Rx control.

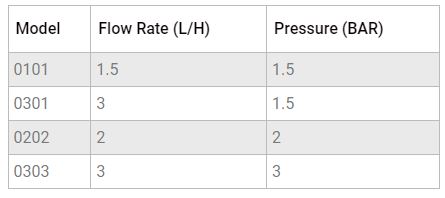

ePool pumps have a maximum flow rate of 3 L/H and a maximum operating pressure of 3 bar.

The ePool series of peristaltic dosing pumps are perfect for the leisure industry and feature in built pH and Rx control. These pumps operate on the suction-compression created by rotors on a Santoprene® tube. They are energy efficient and have an operating range of 6 – 10 W energy consumption.

• Peristaltic Pump with built in pH or Rx controller
• Flow rates up to 3 L/H
• Operating pressures of up to 3 Bar
• Proportional dosing
• Alarm output relay (Overdose and low level alarms)
• Level switch input (with alarm output relay; supplied with level probe)
• Includes accessory/installation kit (comprises pH or Redox probe, probe holder, buffer solutions, saddle clamps, level probe, injection valve, foot filter and suction/discharge tubing)

• pH measurement from 5-9 pH
• Rx Measurement -300 to +900 mV
• Set point selection
• Hysteresis
• Pump activation delay
• Alarm relay output
• On/Off proportional dosing

• Peristaltic Injection Valve: PVC-FPM
• Standard Foot Filter: PP-FPM
• 2m Suction & Discharge tubing
• Saddle Clamp
• Probe Holder
• Buffer Solution(s) (either pH 7 & 9, or 650 mV)
