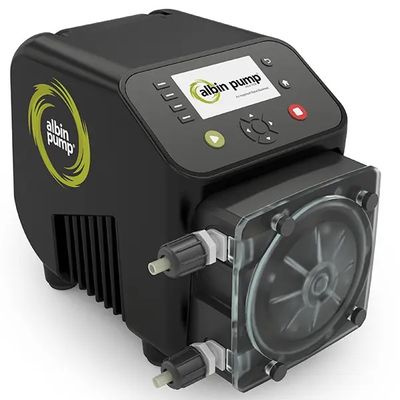

Albin Pump - Model KB & KM Series -Peristaltic Metering Pumps

These revolutionary new pumps offer:

• Next generation safety features:
  • A patent-pending offset rotor assembly releases tube compression during maintenance
  • Tube changes do not require users to manipulate the tube while rotor is turning
  • Offset rotor allows drain and flush of tube prior to removal
• A best-in-class user experience featuring one-button switching between local and remote operation
• No need for complex, multi-step menu navigation each time a mode change is required
• Basic pumps with local control, with an optional upgrade to include remote control protocols
• KM Series pumps feature 10,000:1 turndown, NSF-61 certification, and a 5-year warranty

• 4.33” color LCD display
• Optical tube leak detection standard
• Remote inputs available: 4-20mA, SCADA, Modbus
• Onboard run timer for predictive maintenance
• Equipped with USB port for firmware upgrades

• Each rotation gives the same displacement, which provides excellent chemical metering ability
• Suction lift up to 30 feet (9 meters)
• No backflow or slip allowed
• Self-priming peristaltic metering pump delivers smooth chemical feed
• No moving parts in liquid path – tubing is the only wetted item
• No check balls or check valves
• No damage from running dry
• Pump will not vapor lock or air bind
