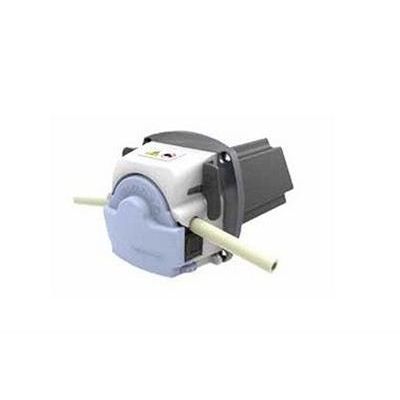

Verderflex - Model Steptronic EZ Head -Peristaltic OEM Pumps
The Steptronic, a cost effective single source solution giving all users from design engineers to large OEM manufactures maximised performance and reliability. Steptronic can help you by reducing downtime and eliminating the design uncertainty and risks associated with the separate specification of pumps, drives and control systems.
Most popular related searches
peristaltic pump OEM
OEM pump
water treatment industry
industrial water treatment
peristaltic pump
chlorination monitoring
chlorine monitoring
flow control
water treatment
water treatment chlorine
- Quick release, compact tube head
- 4096:1 turn down
- 0.1% speed accuracy
- Programmable speed range
- Built in electronic controller
- Maximum Flow Rate: 1310 ml/min
- Maximum Discharge: 2 bar
- Pump Head: Polyamide (One or Two head options available)
- Motor: Motor High resolution, 12 bit stepper drive,
- 12-36V range DC 20W
- Variable Speed - 0.001 to 250 RPM
- Analogue flow control: 0-10Vdc (13Vdc Max), scaleable 4-20mA (27mA Max)
- Rotor: 3 Roller
- Tube Material: Verderprene, Silicone, Viton and Tygon
- Tube Sizes: 0.8 x 1.6 mm, 1.6 x 1.6 mm, 3.2 x 1.6 mm, 4.8 x 1.6 mm, 6.4 x 1.6 mm and 8.0 x 1.6 mm
- Option: Specific tube size clamp inserts
- Weight: 2.0 kg (Cased Option - 2.73 kg)
- Laboratory
- Bio Process
- Methadone dosing
- Water treatment
- Industrial lapping
- Chlorine monitoring
