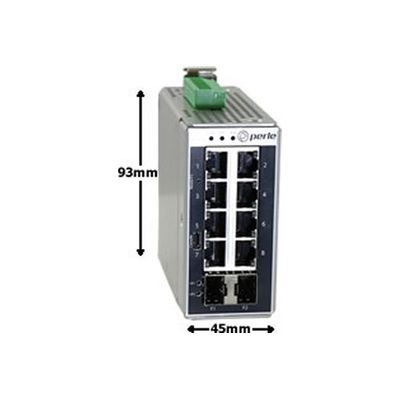

Perle - Model IDS-710 -10 port Managed Ethernet Switch

The SFP slots allow for flexible network configurations using SFP transceivers supplied by Perle, Cisco or other manufacturers of MSA compliant SFPs.  In addition, they make utilizing fiber is easy in environments where high levels of electromagnetic interference ( EMI ) is a common phenomenon, like industrial plants.  This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications. These rugged fan-less switches are hardened to provide superior reliability in -10 to 60°C.  Or, choose the IDS-710-XT, where every component has been designed and tested to handle operating temperatures between -40 and 70°C.

The simple Plug and Play installation available in Perle`s Fast Setup feature gets your Ethernet devices networked immediately. The familiar Command Line Interface ( CLI ), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA ( Cisco Certified Network Associate ) and CCNP ( Cisco Certified Network Professional ) trained engineers.

The IDS-710 Managed Switches have Enterprise-grade features for environments where extensive security, QoS, and network integration functionality is required. They can be managed with an IPv6 address and supports a comprehensive set of management functions including MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, Management Access Lists, Password Strength requirements, RMON, N:1 port mirroring, and local alert log.

All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.

Perle has been designing industrial hardware since 1976. We used this expertise to design the toughest Ethernet switches on the market that will keep your system running for years to come.

• Simple deployment : Zero-touch discovery using Dynamic Host Control Protocol (DHCP), Perle’s “Fast Setup”  for first time installation, provides simple deployment  in Ethernet environments
• Security : 802.1X, port security, Secure Shell (SSHv2); SNMPv3 provides encrypted administrator traffic during CLI and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.
• Resiliency
• STP, RSTP and MSTP protocols for fast recovery.
• MRP ( IEC 62439-2 ) for fast convergence in industrial ring networks. Prevents a switch loop scenario with recovery time of 10 ms or better.
• Perle’s P-Ring protocol for configuring a ring network using standard spanning tree protocols.
• Link Standby is a link recovery feature for two links that provides a simple alternative to spanning tree protocols for link redundancy
• Buffered Real Time Clock backup
• Manageability
• Web Device Manager, Telnet/SSH, HTTPS access, SNMP and Perle’s PerleView NMS for centralized management
• In-band management via RJ45 or USB serial port
• Use an IPv4 or IPv6 address
• Removable MicroSD flash for configuration files and firmware backup and restoration
• Industrial Ethernet Protocol Support    Manage Perle IDS-710 switches via PLC, NMS, HMI or SCADA systems using PROFINET or Modbus TCP.
• Rugged design for harsh environments
• Corrosion resistant case
• Programmable Controller Safety certified
• Certified for hazardous locations
• Extended industrial temperature models
• Reliable operation
• Fan-less, no moving parts
• Dual power input. Connect to separate power sources for redundancy.
• Reverse polarity protection
• Overload current protection
• Handles vibration and shock conditions found in industrial environments
• Real-time Ethernet performance
• Fast wire-speed , store and forward switching
• Auto-sensing for speed and duplex
• Auto-mdi/mdix-crossover works with straight and crossover cables
