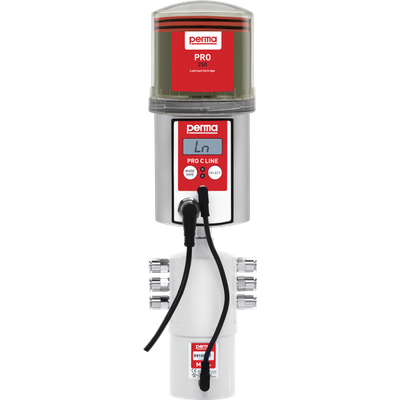

Perma - Model PRO C Line -Multi-Point Lubrication System
perma PRO C LINE is a special multi-point lubrication system with 1 - 6 outlet connections for linear guides. The lubricant discharge is flexible. Each outlet can be adapted to manufacturer specifications. The PRO LC is available in two sizes (filled with 250 cm³ / 500 cm³ of grease) and supplies lubrication points with lubricant for up to 2 years. The high pressure build-up enables remote mounting with tube extensions of up to 5 m (per outlet). Remote mounting not only increases workplace safety, but also makes it possible to lubricate linear guides while they are in operation. perma PRO C LINE receives its power from the machine and can be monitored and controlled via PLC.
- Flexible setting options for every outlet
- Setting via push button with display and LED
- Dual operation
Main applications for the multi-point lubrication system perma PRO C LINE are linear guides. Application fields range from various linear guide systems and drives in the automotive industry to the paper industry. Other applications are roller and sliding bearings, open gears and spindles.
- Drive: Electromechanical
- Power supply: External: 15–30 V
- Housing: Metal / Transparent plastic
- Discharge period: Pause time in days (24 h) / Discharges for each outlet
- Lubricant volume: 250 cm³, 500 cm³
- Operating temperature: -20 °C to +60 °C
- Pressure build-up: 25 bar
- Number of outlets: 1 - 6
- Lubricants: Grease up to NLGI 2
- Max. tube lengths: 5.00 m
- CE: ✓️
