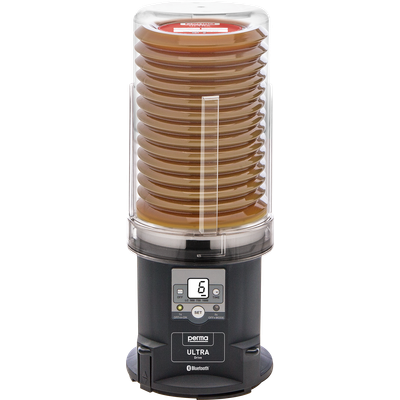

Perma - Model Ultra -Fully Automatic Single-Point Lubrication System
perma ULTRA is a fully automatic lubrication system, independent of temperature and counter pressure with a very precise discharge. With two cartridge sizes, pressure build-up to 50 bar and options of weekly and monthly time settings, perma ULTRA is an extremely versatile and capable lubrication system.
Most popular related searches
- Bluetooth functionality
- Pressure build-up, up to 50 bar
- LCD display with backlighting
perma ULTRA is suited to a wide range of applications which demand high lubrication rates and where long remote grease lines are necessary to ensure safe access, e.g. drag conveyors, shaker screens, rotary kilns and belt conveyors.
- Drive: Electromechanical
- Power supply: Battery pack ULTRA 6.0 V
- Housing: Plastic
- Discharge period: 1, 2, 3, ..., 12 months | 1, 2, 3, ..., 52 weeks
- Lubricant volume: 500 cm³, 1000 cm³
- Operating temperature: -20 °C to +60 °C (Alkaline) | -40 °C to +60 °C (Lithium)
- Pressure build-up: Up to 50 bar
- Protection class: IP 67 / IP 65
- Lubricants: Grease up to NLGI 2
- Max. tube lengths: 20.00 m
- CE: ✓️
