PermAlert - Model ATP -Insulated Pipe Water Leak Detection Cable Sensor

• Durable Design
• High Sensitivity

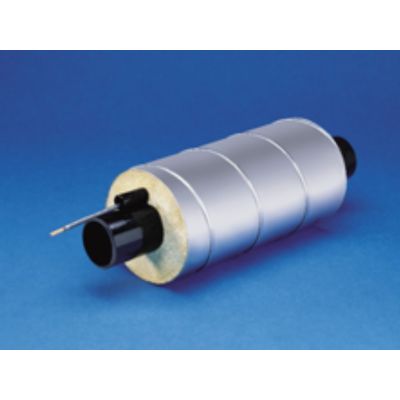

• Factory Installed on Pipe
• Low Maintenance

PermAlert is the leak detection and location systems technology specialist since 1988. We work with customers to address their most complex leak detection challenges and to deliver innovative business solutions that bring higher value to every facility.

PermAlert offers continuous monitoring, multi-level alerts, system logging, BMS integration, and cost savings to the data centers, oil & gas, commercial buildings, and healthcare industries.

No matter where the leak location is, we are confident that our stability as a company, team of technical expertise, and international network are at your disposal to help minimize leaks and to maximize asset protection.

Overview

The PAL-AT family of sensor cables are able to meet the specific requirements of a wide variety of applications and environments including subfloors, containment pipe systems, direct burial and foam insulated pipes. The sensor cables offer the leak detection designer flexibility and choice in selecting the proper cable for the desired system sensitivity.

All PAL-AT cables and connectors are easily spliced or repaired in the field to minimize downtime and repair cost.

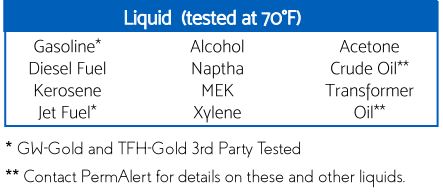

PAL-AT AGW-Gold and AGT-Gold sensor cables have the ability to detect both water-based and hydrocarbon liquids.   This reduces the number of sensor cables required in many applications.

Each of these PAL-AT sensor cables can be dried and reused after a water-based or volatile hydrocarbon leak has been cleaned up. These cables have no exposed metal and are designed for corrosive chemical applications. Each individual strand of braid wire is coated with a high-temperature, corrosion-resistant polymer and the length of the cable is covered with a fluoropolymer overbraid. Because there is no exposed metal, the Gold cables eliminate the need for special isolation precautions in cathodic-protected pipe applications.

PAL-AT TFH-Gold hydrocarbon sensor cable uses a hydrocarbon permeable core to detect hydrocarbon liquids while ignoring water-based liquids. In most cases, the sensor cable must be replaced after exposure to hydrocarbons.

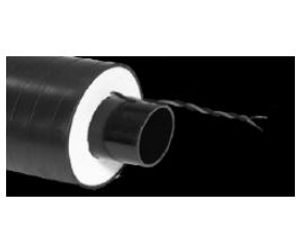

Sensor cable shall be a twisted-pair construction. The cable insulation shall be irradiated cross-linked PE. The cable shall be designed to detect water-based liquids and be factory installed in polyurethane foam insulation.
