Sollau - Model DND-MC M F -Permanent Overband Magnetic Plates
The main benefits of ferrite magnetic plates include the following: high temperature resistance, long-term magnetic stability, affordable price, deep and very strong magnetic field (in case of stronger models). Combines a standard performance with an interesting price. These separators are intended for medium-duty applications with the maximum installation height of 200 mm, and they are capable of trapping larger ferromagnetic particles (above 1 mm). A very good rate of return (price/performance ratio) is a significant benefit of this kind of plate.
- Installation height up to 200 mm
- Lower weight
- Capturing ferromagnetic particles bigger than 1 mm
- Max. speed of the conveyor belt 1.5 m/s
How is magnetic plate cleaned?
The magnetic plate is suspended above the belt conveyor and the magnetic impurities are captured at the bottom of the magnetic plate (usually fitted with strong permanent ferrite magnets, however on client`s requirement is is possible to use extremely strong neodymium NdFeB magnets). The ferrous particles accumulated on the surface of the magnetic plate are removed manually. If the material contains too many ferromagnetic particles, the magnetic plate is swiftly clogged with magnetic impurities. In this case we recommend that the clients opts for our overband magnetic separator DND-AC with automatic cleaning.
DND-MC magnetic plate can be equipped (at extra charge) with a cleaning stripper tray for simple removal of the trapped magnetic particles. On the bottom of the cleaning stripper tray (that protects the magnetic core steel plate) there are longitudinal steel slats that prevent the captured ferromagnetic particles from jumping onto the magnetic core steel plate during the cleaning (when the cleaning stripper tray is being drawn out) and also ensure uniform distribution of the trapped ferrous material on the stripper tray surface.

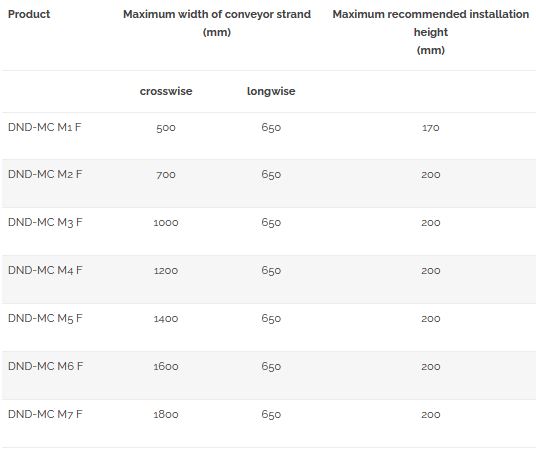

Dimensions of magnetic plate
The magnetic plate with manual cleaning can be made in any size according to customer`s needs.
Magnetic plate on a rail construction
Manual cleaning permanent magnetic separator on a special rail construction is a sophisticated version of the magnetic plate. Thanks to the rail construction it is possible to move the magnetic plate aside and carry out the cleaning or maintenance in a very easy and safe way (even without stoppage of the conveyor belt).
Connection of a magnetic plate and magnetic roll
in order to achieve the most efficient metal separation in case of a high layer of the transported material, we recommend to combine the use of the magnetic plate with our magnetic pulley MV (that can separate the ferromagnetic particles also from lower layers of the transported material).
