Permastore Trifusion - Model Plus -Glass-Fused-to-Steel (GFtS)

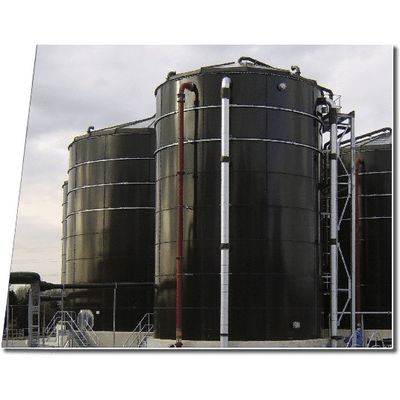

Permastore’s TRIFUSION® PLUS surface coating takes its acclaimed TRIFUSION® standard to an even higher level, for use in the most extreme of environments. Aggressive chemical and high temperature processes can be considered with this high-quality contact surface finish. The contact surface of every panel supplied is 100% factory tested and inspected at an exacting standard that guarantees ‘zero discontinuity/defect free’ tank panels when tested at 1500 Volts.
- Application: pH range: 1-14
- Type: 3 coat/2 fire
- Thickness: 340-500 microns
- Test regime: Zero discontinuity when tested at 1500 Volts
- Exceeds quality requirements of EEA 7.20
- Meets/exceeds the glass coating requirements of AWWA D103-19 - section 12.4
- Meets/exceeds quality requirements of EN ISO 28765:2022
TRIFUSION® PLUS is a factory applied coating that gives assurance to the highest quality associated with the PERMASTORE® brand.
- Thermophilic Digestion
- Aggressive / Chemical Industrial Effluents
- High Temperature Applications
- Thermophilic Digestion
- Aggressive/Chemical Industrial Effluents
- High Temperature Applications
- Extreme Leachates
All applications are subject to chemical concentration and temperature considerations. All specifications relate to the contact surfaces only. A detailed specification is available on request.
