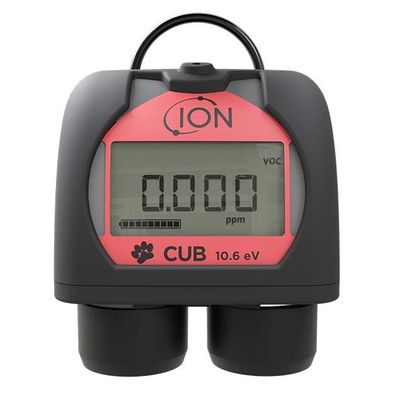

Cub 10.6 eV - Personal VOC Gas Detector
The Cub 10.6 eV personal VOC gas detector is worn within the breathing zone to detect volatile organic compounds, keeping you safe within your working environment. The Cub 10.6 eV is the worlds smallest and lightest wearable VOC gas detector. When worker exposure exceeds pre-set limits Cub’s audible, vibrating, and flashing LED alarms alert you to the gases present. Readings are displayed on its bright, back-lit LCD display with selectable data logging time.
Cub’s patented photoionisation detection (PID) sensor technology has been independently verified as best performing for speed, accuracy, and humidity resistant operation.
The Cub 10.6 eV personal VOC gas detector is available as a standard instrument with 10.6 eV lamp for accurately detecting a wide range of volatile organic compounds (VOCs) to parts-per-million (ppm) levels.
Also available from ION Science, the Cub TAC 10.0 eV benzene detector.
- Unrivalled sensitivity detects down to ppb levels
- Widest range detecting gases 0 to 5,000 ppm
- In-built humidity resistance with no need to compensate
- Measures 480 selectable compounds
- Anti-contamination design for extended field operation
- Fast (less than 13 second) response to hazardous gases & vapours
- Clear audio, visual and vibrating alarms
- Large LCD display for clear readings
- Battery life up to 12 hours
- Meets ATEX, IECEx certification
- Fast start up with no complicated set up
- Battery life up to 12 hours continual use
- Simple icon driven menu requires minimal user training
- Direct USB connectivity for fast data download
Specification: Value
- Sensitivity: 0.5 ppm (500 ppb) ****
- Accuracy: ± 12% of display reading****
- Response: <13 seconds (T90)
- Approvals :
- ll 1 G Ex ia llC T4 Ga (-20 °C ≤ Ta ≤ 55 °C)
- Baseefa11ATEX0027
- IECEx BAS 11.0014
- US and Canadian approvals: Class I, II and III, Division I, Hazardous (Classified) Locations
- Battery:
- Battery life up to 12 hours
- Battery charge time 4 hours
- PID lamp options: 11.7 eV
- Data Logging: 30,000 readings
- Communications: USB 2.0
- Alarms:
- LEDs, audio and vibrate Sounder 95 dB @ 300 mm
- Pre-programmed TWA & STEL Work exposure alarm levels on all models
- Temperature: 0°C to 55°C
- Weight and Dimensions:
- 111g (2.91 oz)
- 61 x 66 x 59 mm (2.4 x 2.6 x 2.3″)
- Resolution: 11.7 eV: 0.1 ppm
- Range**: 0 – 5000 ppm ****#
- Calibration: 2 point calibration via docking station
- Upgradeable : N/A
- IP Rating: IP65** (heavy rain)
- LCD Display: Backlit multi colour
- Flow Rate: N/A (no pump)
** IP65 with PTFE filter fitted, IP64 without PTFE filter fitted.
**** Specifications are based on isobutylene calibrations at 20 °C and 1000 mBar.
#For indicative measurements only. Quoted accuracy achievable up to 2,000 ppm. For more accurate detection, calibration around concentration of interest is recommended.
